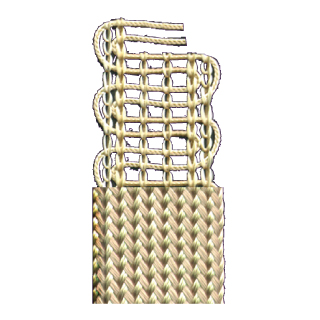

The Duo-Tape construction begins with bundled, fine strand resistance wire, 37 to 40 gauge, covered with a minimum of 2 layers of high temperature braided AMOX yarn. The insulated resistance wire is then knitted into a serpentine configuration, forming a flat tape. Once the lead wires are attached, most tapes have an additional braided, dielectric protection layer of AMOX yarn for use on conductive (metal) surfaces. Heating Tape with Adjustable Thermostat Control or Time Percentage Control has a moisture & chemical resistant silicone rubber extruded outer sheath and a fiberglass reinforced serpentine-wound stranded heating element
No options available for this section based on your selections

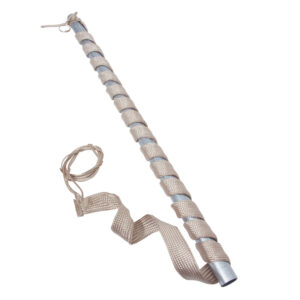

High Temperature Duo-Tape
Design Features: 1400°F (760°C) temperature rating 2 ft. (610 mm) long high temperature lead wires on one end Highly flexible & rugged, knitted design High, medium and low watt density designs Constant wattage (min. ohm change cold to hot)
Design Features: 1400°F (760°C) temperature rating 2 ft. (610 mm) long high temperature lead wires on one end Highly flexible & rugged, knitted design High, medium and low watt density designs Constant wattage (min. ohm change cold to hot)
testing

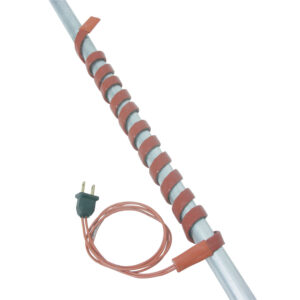

Silicone Rubber Duo-Tape
Design Features: 400°F (204°C) temperature rating, non-energized exposure to 500°F (260°C) 2 ft. (610 mm), 16 gauge, 600 VAC silicone rubber insulated leads Vulcanized fiber reinforced silicone rubber end cap Standard low watt density of 4.3 w/inch2 All standard 120 Volt units are provided with plug Multi strand wire element for maximum flexibility Highly flexible and durable design
Design Features: 400°F (204°C) temperature rating, non-energized exposure to 500°F (260°C) 2 ft. (610 mm), 16 gauge, 600 VAC silicone rubber insulated leads Vulcanized fiber reinforced silicone rubber end cap Standard low watt density of 4.3 w/inch2 All standard 120 Volt units are provided with plug Multi strand wire element for maximum flexibility Highly flexible and durable design

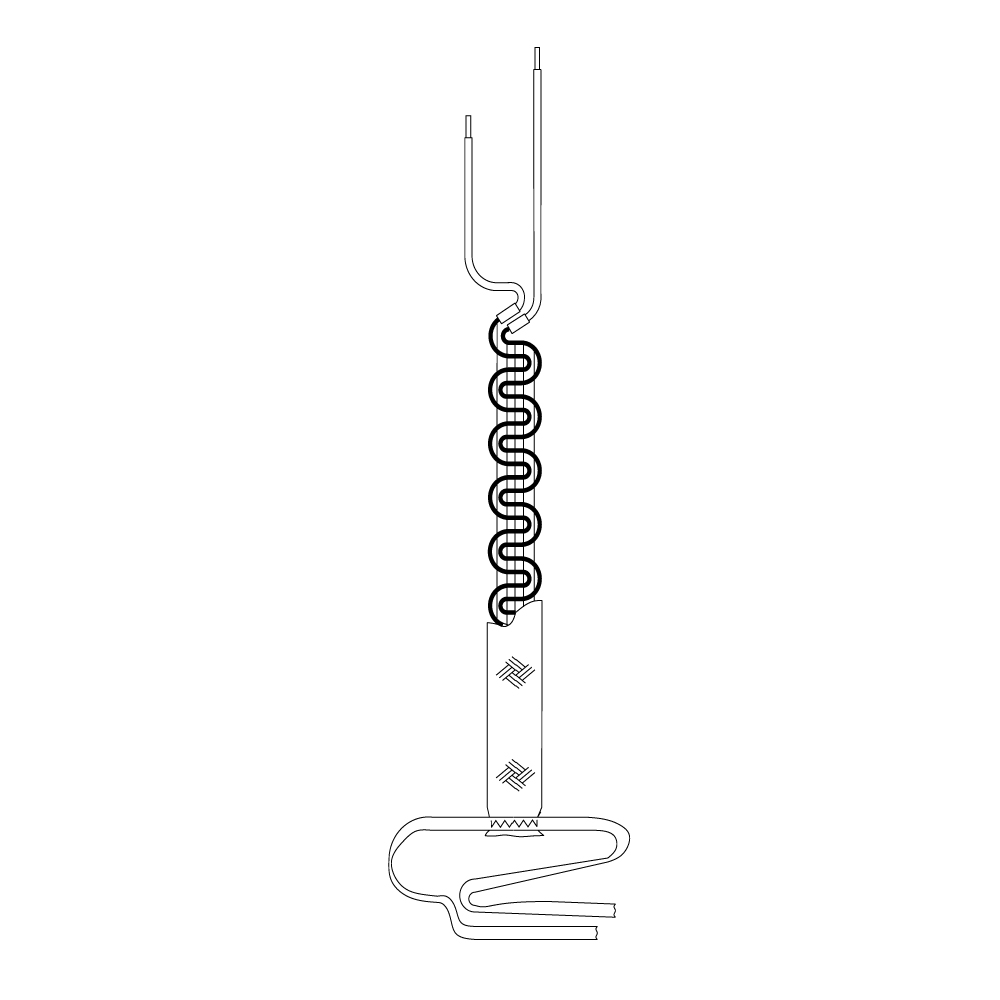

Silicone Rubber Duo Tape cutout view
Silicone Rubber Heating Tape with Thermostat or Time Percentage Control
Design Features: Maximum exposure temperature: 450°F (232°C) Rapid heat-up and thermal response Power density: 6.0 watts/inch2 6 foot (2 m) long power cord with 120VAC: standard 2-prong NEMA 1-15 plug 240VAC: bare wire construction Suitable for electrically conductive surfaces
Silicone Rubber Heating Tape with Thermostat or Time Percentage Control
Design Features: Maximum exposure temperature: 450°F (232°C) Rapid heat-up and thermal response Power density: 6.0 watts/inch2 6 foot (2 m) long power cord with 120VAC: standard 2-prong NEMA 1-15 plug 240VAC: bare wire construction Suitable for electrically conductive surfaces

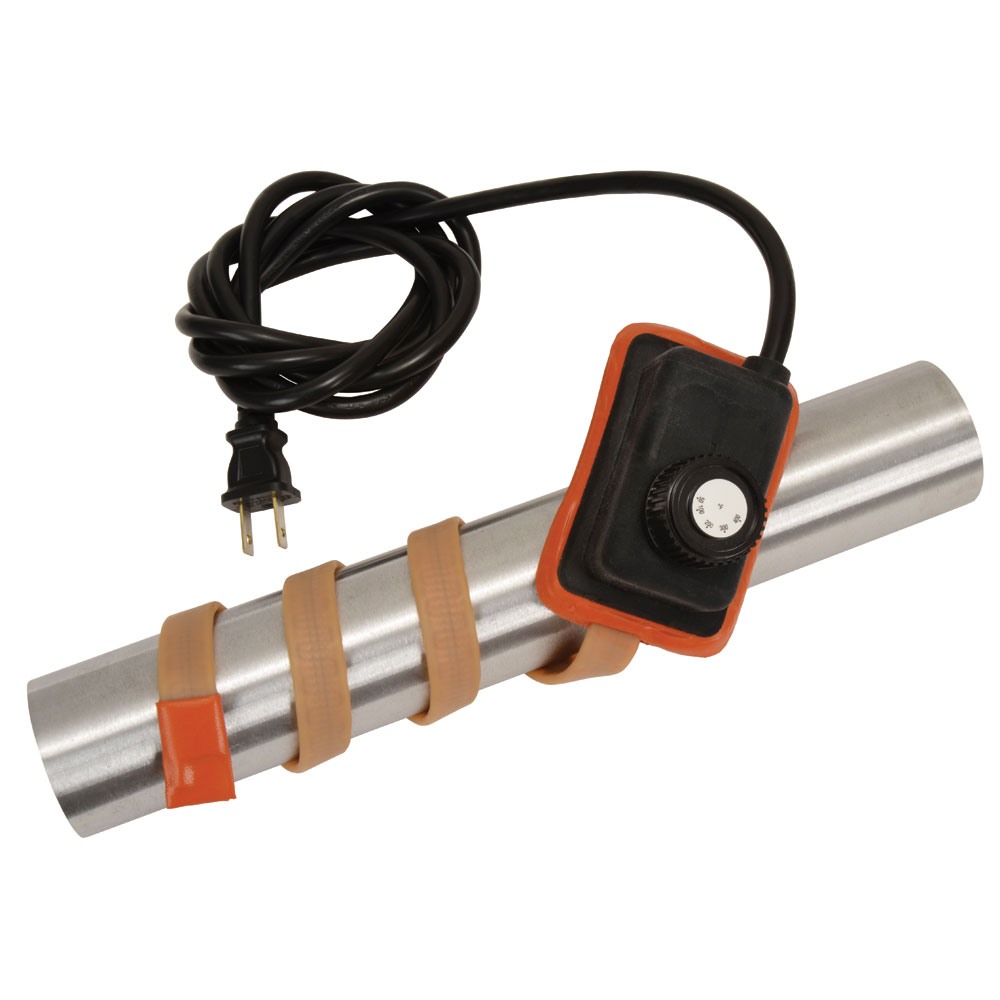

FTF3 with Adjustable Thermostat Control
The heat sensing plate on the bottom of the thermostat enclosure must make firm contact with the load being sensed.

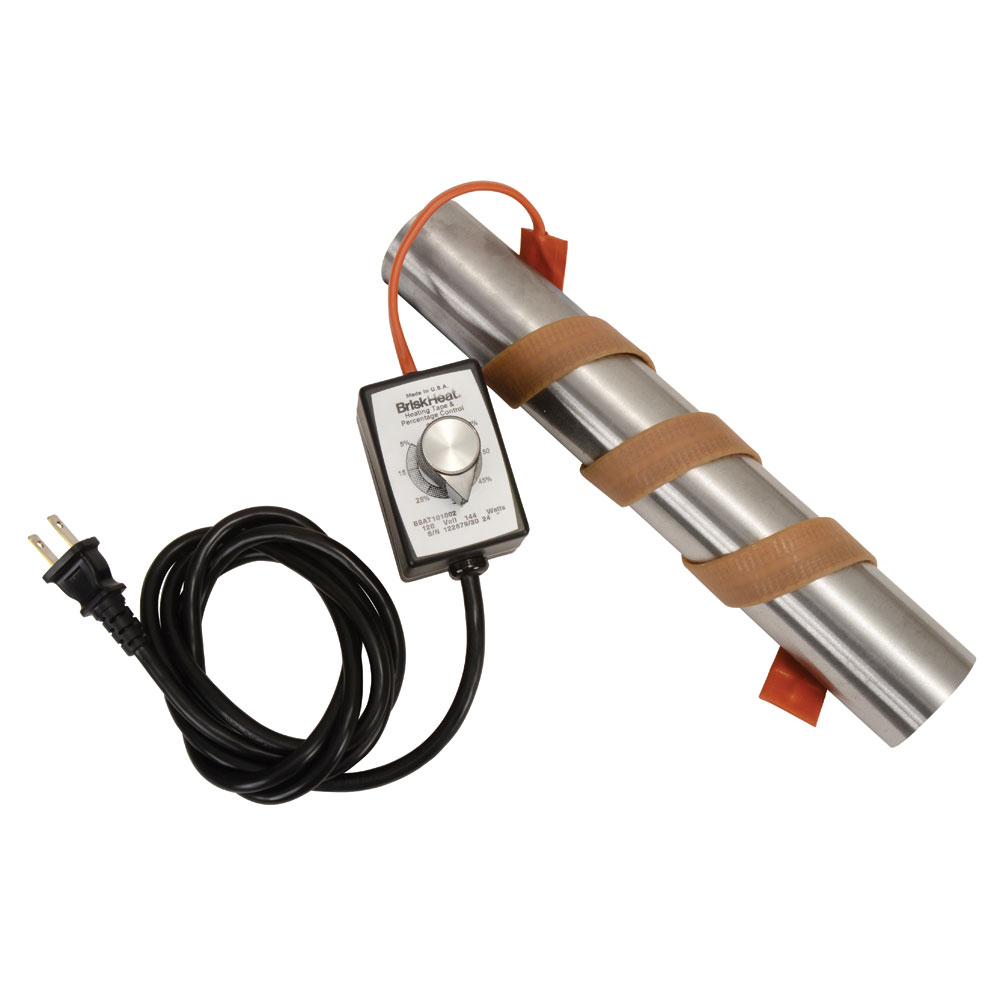

FTF4 with Time Percentage Control
The time percentage control varies the length of time the heater is the on vs. off heating mode. The controller does not use a temperature sensor and therefore requires occasional supervision under changing load conditions.
Electrical Terminations
No options available for this section based on your selections
📦
Lead Wire
Standard lead wire length is 2 ft. (61 cm). NOTE: Optional lengths may be ordered to 8 ft. For special length, width, watts or volts—contact Tempco.
Standard lead wire length is 2 ft. (61 cm). NOTE: Optional lengths may be ordered to 8 ft. For special length, width, watts or volts—contact Tempco.
📦
Plug
A 120V plug can be ordered on indicated heaters only as a custom assembly. Since the leads of the Duo-Tape are on one end, the plug is a single molded unit. NOTE: When a plug is requested, lead wire length may be 2 ft. or shorter. Optional lengths may be ordered to 8 ft. For special length, width, watts or volts—contact Tempco.
A 120V plug can be ordered on indicated heaters only as a custom assembly. Since the leads of the Duo-Tape are on one end, the plug is a single molded unit. NOTE: When a plug is requested, lead wire length may be 2 ft. or shorter. Optional lengths may be ordered to 8 ft. For special length, width, watts or volts—contact Tempco.
