Tempco enclosure heaters are the answer to all your enclosure heater needs. Our heaters are designed to help electric, electronic, pneumatic, hydraulic and mechanical equipment perform at top capacity by protecting them against low temperatures, condensation and corrosion. Tempco offers four different styles of heaters that can be used in enclosure heating applications:
No options available for this section based on your selections

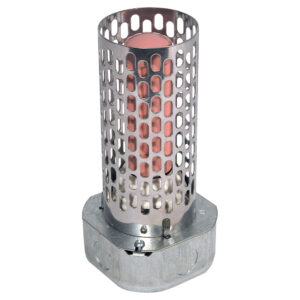

Ceramic E-mitter® Enclosure Heaters (EHC)
The heating element is a Ceramic E-mitter, Series CRT, Edison Screw-In Bulb radiant heater. This enclosure heater comes standard with a perforated stainless steel guard attached to a standard NEMA 1 electrical box. See also: Ceramic Infrared E-mitters®
The heating element is a Ceramic E-mitter, Series CRT, Edison Screw-In Bulb radiant heater. This enclosure heater comes standard with a perforated stainless steel guard attached to a standard NEMA 1 electrical box. See also: Ceramic Infrared E-mitters®
Typical Applications
Traffic Signal Control Boxes
Automatic Teller Machines (ATMs)
Outdoor Electrical Power Enclosures
Control Panels
Control Valve Housings
Switch Gear
Clothing Lockers

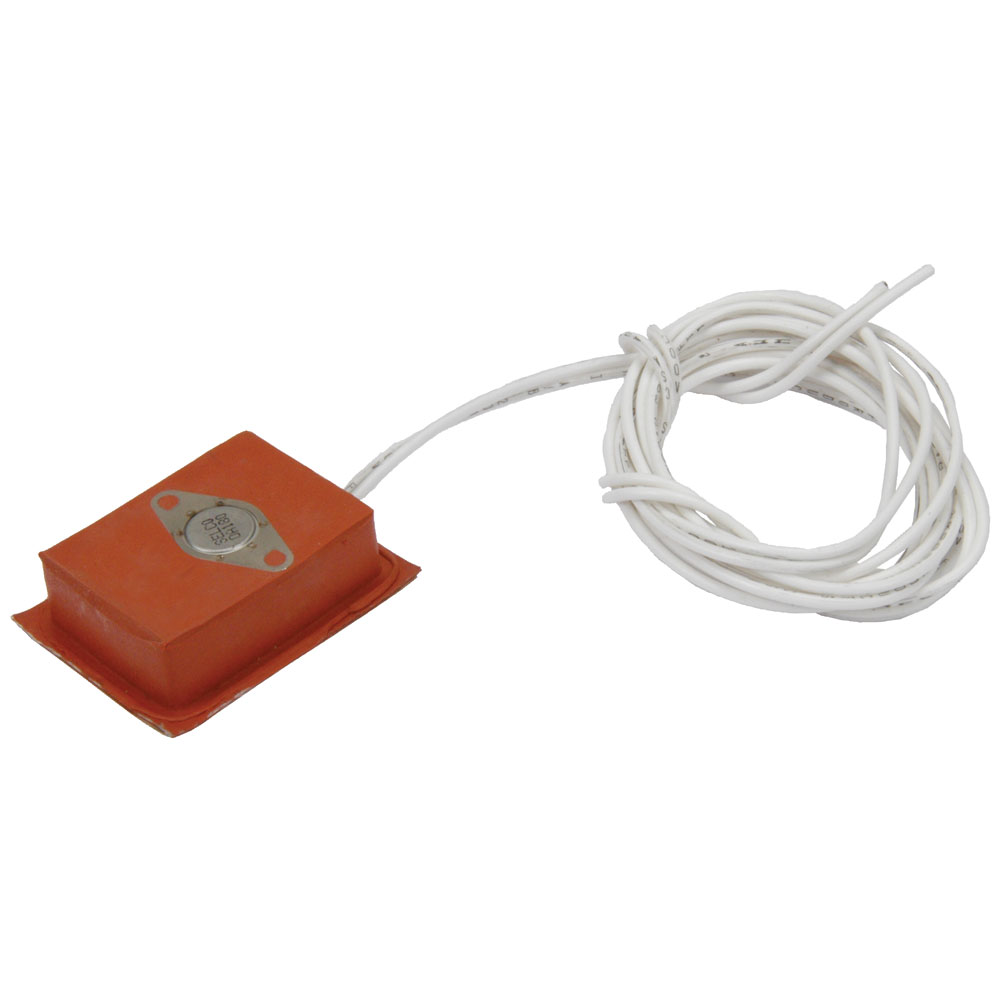

Remote Thermostats for Enclosure Heaters
Pressure Sensitive Adhesive for easy mounting
Standard 16ga Teflon® lead length: 48″
Can easily be located anywhere in the enclosure using the pressure sensitive adhesive.
Any standard thermostat can be used (see thermostats for available ranges)
Silicone rubber base and enclosure
Ratings: 10A/250 Vac, 15A/120 Vac

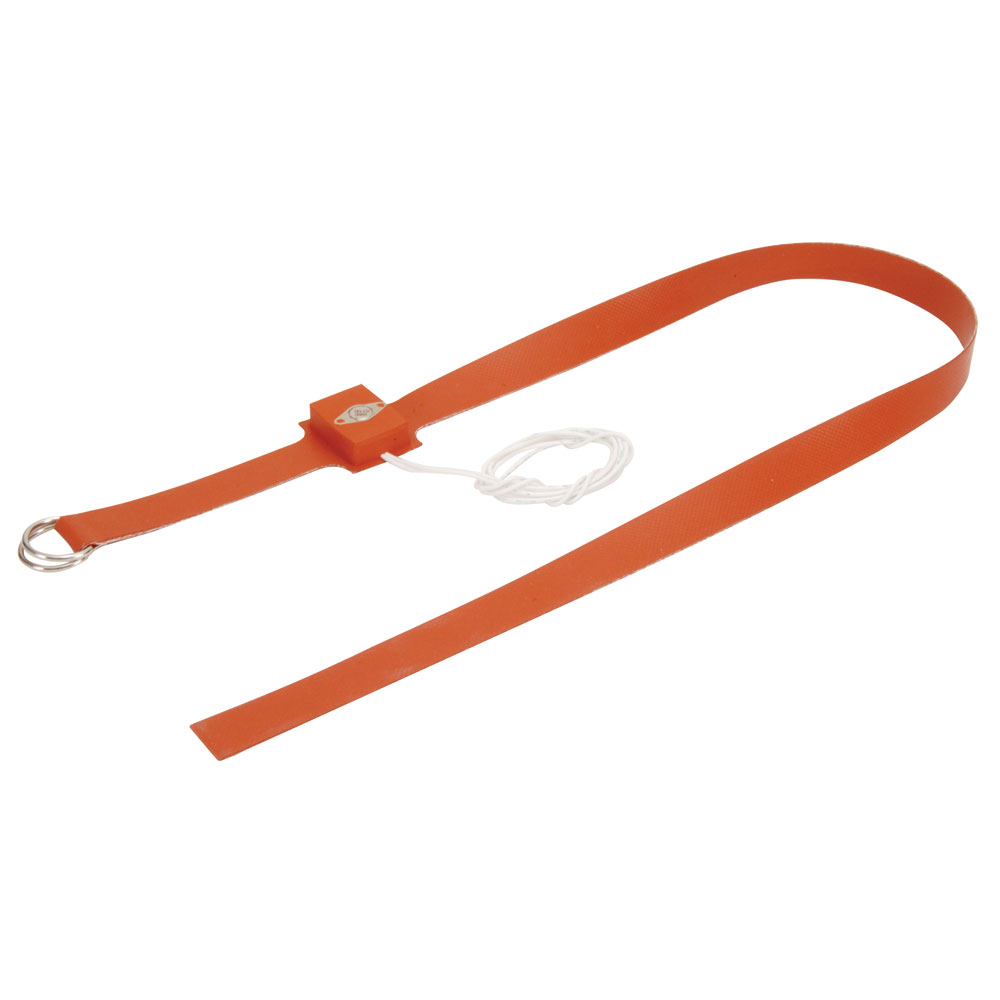

Part Number: EHA00005(pictured below) – D-ring and strap mounting thermostat. Can be applied to sense the air around an object or an object directly.

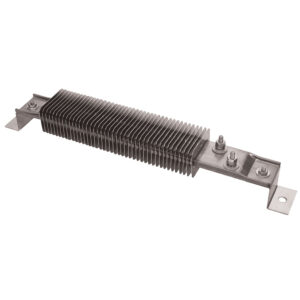

Finned Strip Enclosure Heaters (EHF)

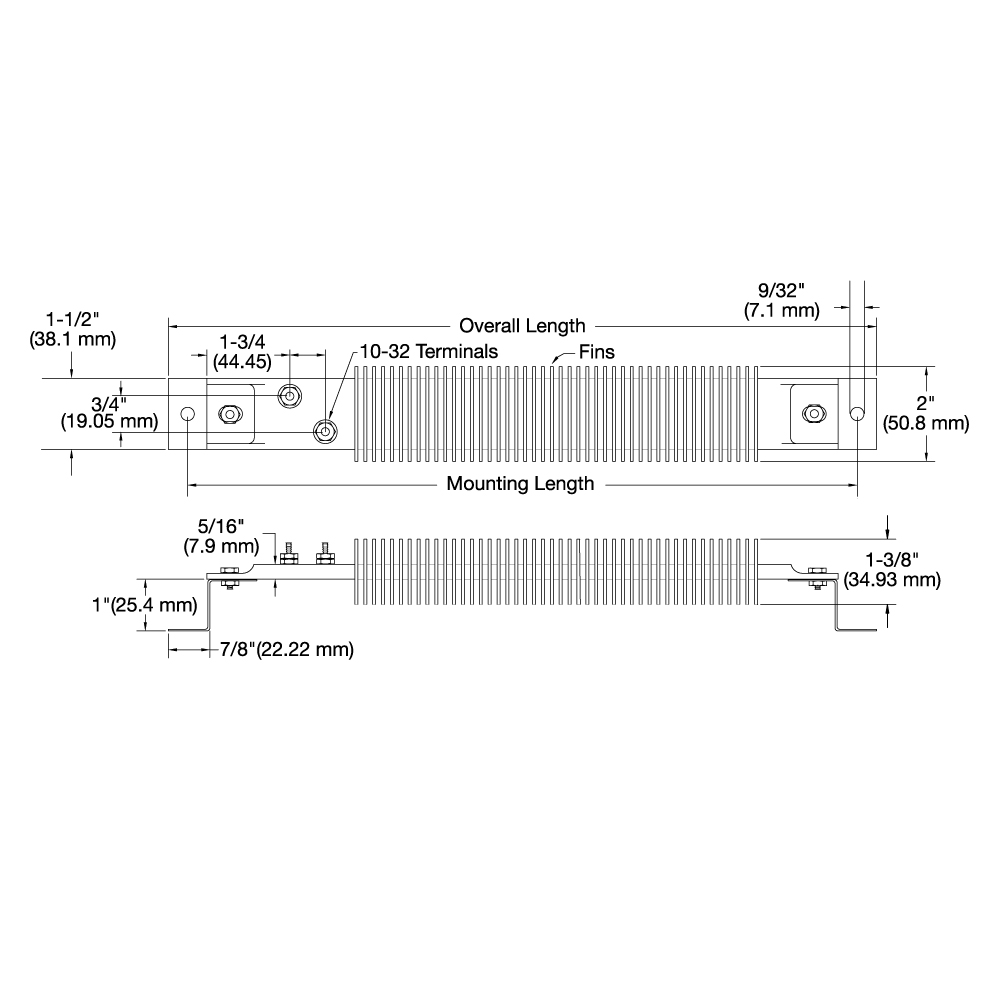

Tempco finned strip enclosure heaters are manufactured with stainless steel sheath and fins and terminated with Type T4: Offset 10-32 Screw Terminals. They are easily installed with special enclosure mounting brackets. See also: Finned Channel Strip Heaters
Tempco finned strip enclosure heaters are manufactured with stainless steel sheath and fins and terminated with Type T4: Offset 10-32 Screw Terminals. They are easily installed with special enclosure mounting brackets. See also: Finned Channel Strip Heaters
Remote Thermostats for Enclosure Heaters
Pressure Sensitive Adhesive for easy mounting
Standard 16ga Teflon® lead length: 48″
Can easily be located anywhere in the enclosure using the pressure sensitive adhesive.
Any standard thermostat can be used (see thermostats for available ranges)
Silicone rubber base and enclosure
Ratings: 10A/250 Vac, 15A/120 Vac
Part Number: EHA00005(pictured below) – D-ring and strap mounting thermostat. Can be applied to sense the air around an object or an object directly.

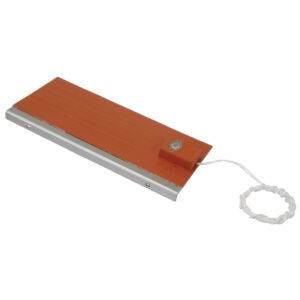

Silicone Rubber Enclosure Heaters (EHR)
Silicone Rubber Enclosure Heaters are designed for easy installation and safe operation. These rectangular shaped wire-wound Silicone Rubber Heaters are vulcanized to an aluminum mounting plate with mounting holes. They provide superior protection for enclosures of all types against condensation, humidity and freezing. See also: Silicone Rubber Heaters
Silicone Rubber Enclosure Heaters are designed for easy installation and safe operation. These rectangular shaped wire-wound Silicone Rubber Heaters are vulcanized to an aluminum mounting plate with mounting holes. They provide superior protection for enclosures of all types against condensation, humidity and freezing. See also: Silicone Rubber Heaters
Additional Design Features
Available with or without an Integrated Thermostat (See EHA below for Remote Thermostats)
Custom Design and Alternate Thermostat Settings Available
Heater Vulcanized to an Aluminum Mounting Plate for Easy Installation
120V Standard; Custom Voltages Available upon Request
48″ Teflon® Leads Standard
Dimensions Listed are for Heater and Bracket; Actual Heater Width is 1/2″ Less
Safe to Operate, No Exposed Electrical Connections
It is recommended that the enclosure heater be used with a thermostat either built in or mounted remotely to limit the maximum temperature reached and conserve energy. The suggested mounting method is at the bottom of the enclosure, mounted vertically. If a remote mounted thermostat is preferred, mount the heater on the bottom of the enclosure and the thermostat in the middle of the enclosure. Remote Thermostats for Enclosure Heaters
Pressure Sensitive Adhesive for easy mounting
Standard 16ga Teflon® lead length: 48″
Can easily be located anywhere in the enclosure using the pressure sensitive adhesive.
Any standard thermostat can be used (see thermostats for available ranges)
Silicone rubber base and enclosure
Ratings: 10A/250 Vac, 15A/120 Vac
Part Number: EHA00005(pictured below) – D-ring and strap mounting thermostat. Can be applied to sense the air around an object or an object directly.
Tubular Heater Enclosure Heaters (EHT)

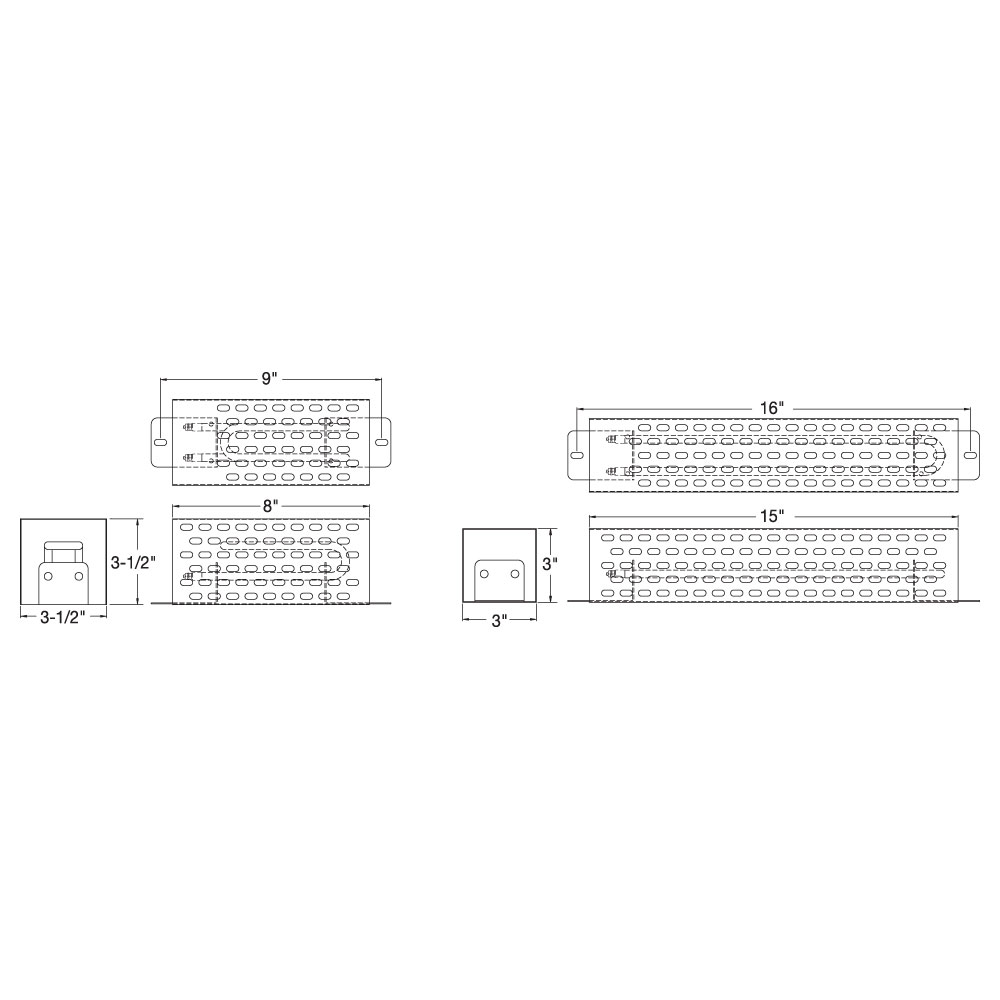

Two styles of Tubular Heater Enclosure Heaters are available to fit your application: a box style and an open style. Both have Incoloy® tubular heating elements and can be up to 15 w/in2. See also: Tubular Heaters
Two styles of Tubular Heater Enclosure Heaters are available to fit your application: a box style and an open style. Both have Incoloy® tubular heating elements and can be up to 15 w/in2. See also: Tubular Heaters

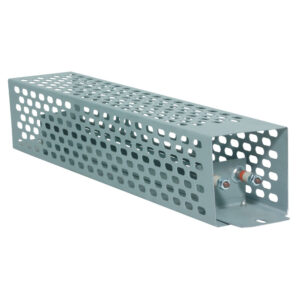

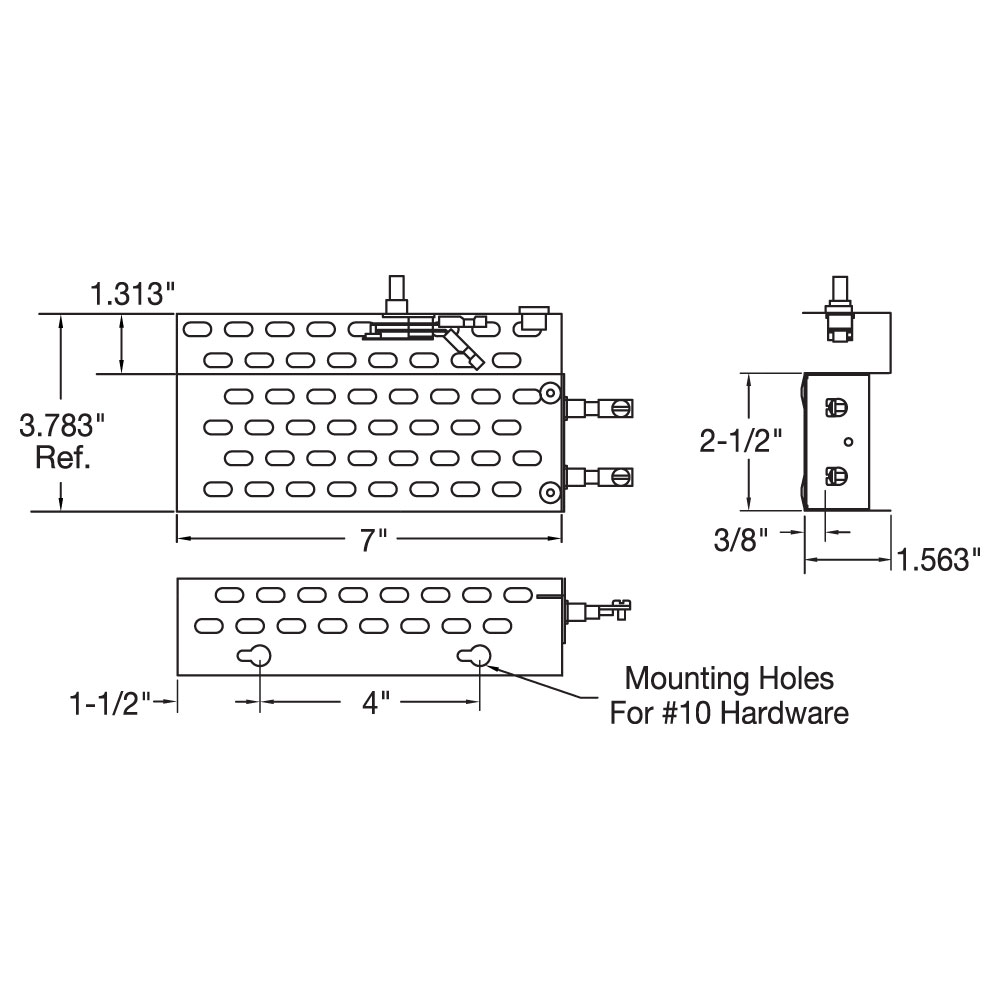

Type 1: Box Style
Electrical Termination: Type T – 10-32 screw terminals
Box Style Guard is perforated aluminzed steel

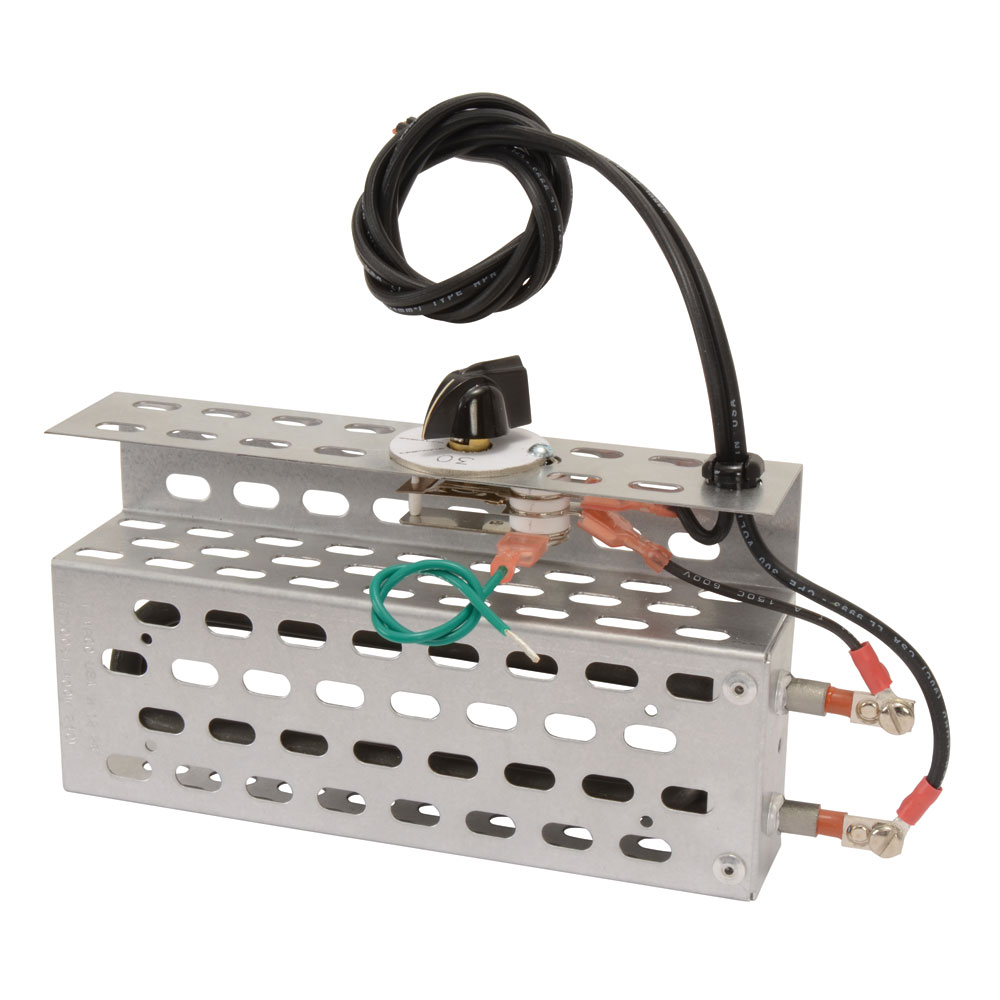

Type 2: Open Style
Electrical Termination: Type L – Terminal Lug
Available with 30-150°F thermostat prewired with 36″ HPN line cord
Open Style Guard is perforated aluminized steel
Remote Thermostats for Enclosure Heaters
Pressure Sensitive Adhesive for easy mounting
Standard 16ga Teflon® lead length: 48″
Can easily be located anywhere in the enclosure using the pressure sensitive adhesive.
Any standard thermostat can be used (see thermostats for available ranges)
Silicone rubber base and enclosure
Ratings: 10A/250 Vac, 15A/120 Vac
Part Number: EHA00005(pictured below) – D-ring and strap mounting thermostat. Can be applied to sense the air around an object or an object directly.
Tubular Heater Enclosure Heaters (EHT) Two styles of Tubular Heater Enclosure Heaters are available to fit your application: a box style and an open style. Both have Incoloy® tubular heating elements and can be up to 15 w/in2. See also: Tubular Heaters Type 1: Box Style Electrical Termination: Type T – 10-32 screw terminals Box Style Guard is perforated aluminzed steel Type 2: Open Style Electrical Termination: Type L – Terminal Lug Available with 30-150°F thermostat prewired with 36″ HPN line cord Open Style Guard is perforated aluminized steel Remote Thermostats for Enclosure Heaters Pressure Sensitive Adhesive for easy mounting Standard 16ga Teflon® lead length: 48″ Can easily be located anywhere in the enclosure using the pressure sensitive adhesive. Any standard thermostat can be used (see thermostats for available ranges) Silicone rubber base and enclosure Ratings: 10A/250 Vac, 15A/120 Vac Part Number: EHA00005 (pictured below) – D-ring and strap mounting thermostat. Can be applied to sense the air around an object or an object directly. Construction Styles Agency Approvals (if required) Tubular Heater UL Recognized, Canada & U.S. Silicone Rubber Enclosure Heaters (EHR) Silicone Rubber Enclosure Heaters are designed for easy installation and safe operation. These rectangular shaped wire-wound Silicone Rubber Heaters are vulcanized to an aluminum mounting plate with mounting holes. They provide superior protection for enclosures of all types against condensation, humidity and freezing. See also: Silicone Rubber Heaters Additional Design Features Available with or without an Integrated Thermostat (See EHA below for Remote Thermostats) Custom Design and Alternate Thermostat Settings Available Heater Vulcanized to an Aluminum Mounting Plate for Easy Installation 120V Standard; Custom Voltages Available upon Request 48″ Teflon® Leads Standard Dimensions Listed are for Heater and Bracket; Actual Heater Width is 1/2″ Less Safe to Operate, No Exposed Electrical Connections It is recommended that the enclosure heater be used with a thermostat either built in or mounted remotely to limit the maximum temperature reached and conserve energy. The suggested mounting method is at the bottom of the enclosure, mounted vertically. If a remote mounted thermostat is preferred, mount the heater on the bottom of the enclosure and the thermostat in the middle of the enclosure. Remote Thermostats for Enclosure Heaters Pressure Sensitive Adhesive for easy mounting Standard 16ga Teflon® lead length: 48″ Can easily be located anywhere in the enclosure using the pressure sensitive adhesive. Any standard thermostat can be used (see thermostats for available ranges) Silicone rubber base and enclosure Ratings: 10A/250 Vac, 15A/120 Vac Part Number: EHA00005 (pictured below) – D-ring and strap mounting thermostat. Can be applied to sense the air around an object or an object directly. Silicone Rubber Finned Strip Enclosure Heaters (EHF) Tempco finned strip enclosure heaters are manufactured with stainless steel sheath and fins and terminated with Type T4: Offset 10-32 Screw Terminals. They are easily installed with special enclosure mounting brackets. See also: Finned Channel Strip Heaters Remote Thermostats for Enclosure Heaters Pressure Sensitive Adhesive for easy mounting Standard 16ga Teflon® lead length: 48″ Can easily be located anywhere in the enclosure using the pressure sensitive adhesive. Any standard thermostat can be used (see thermostats for available ranges) Silicone rubber base and enclosure Ratings: 10A/250 Vac, 15A/120 Vac Part Number: EHA00005 (pictured below) – D-ring and strap mounting thermostat. Can be applied to sense the air around an object or an object directly. Finned Strip UL Recognized, U.S. Ceramic E-mitter® Enclosure Heaters (EHC) The heating element is a Ceramic E-mitter, Series CRT, Edison Screw-In Bulb radiant heater. This enclosure heater comes standard with a perforated stainless steel guard attached to a standard NEMA 1 electrical box. See also: Ceramic Infrared E-mitters® Typical Applications Traffic Signal Control Boxes Automatic Teller Machines (ATMs) Outdoor Electrical Power Enclosures Control Panels Control Valve Housings Switch Gear Clothing Lockers Remote Thermostats for Enclosure Heaters Pressure Sensitive Adhesive for easy mounting Standard 16ga Teflon® lead length: 48″ Can easily be located anywhere in the enclosure using the pressure sensitive adhesive. Any standard thermostat can be used (see thermostats for available ranges) Silicone rubber base and enclosure Ratings: 10A/250 Vac, 15A/120 Vac Part Number: EHA00005 (pictured below) – D-ring and strap mounting thermostat. Can be applied to sense the air around an object or an object directly. Ceramic Infrared
