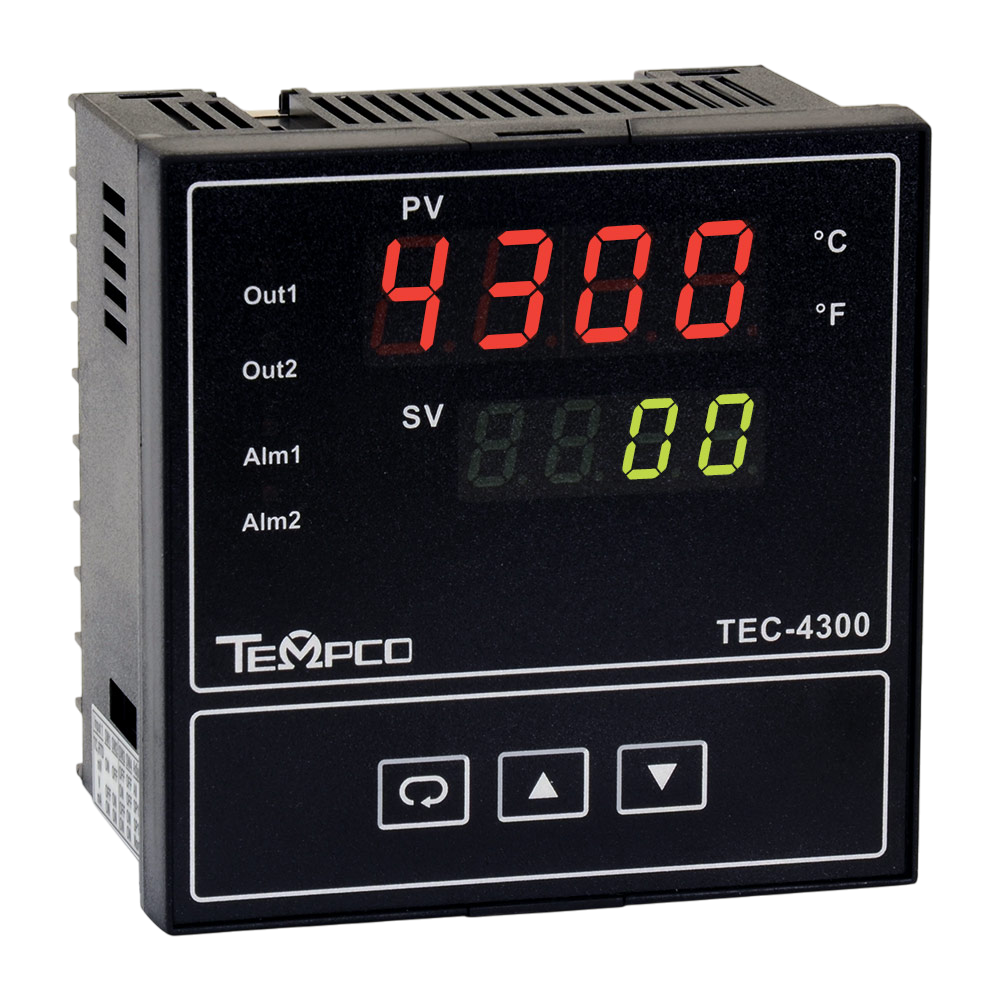

Model TEC-4300 Temperature Controller

TEC-4300 Design Features

1/4 DIN size – 96 mm × 96 mm
Fuzzy logic PID Autotune heat and cool control
Short panel depth – only 2″ (53 mm) required
Universal input, field configurable (Type J T/C default, PT100, mA, V) witih high accuarcy 18-bit D-A
Heater Break Alarm using 0-50 Amp current transformer
Output 2 can be programmed as cooling output only
2 optional alarms – programmable NO or NC relay
Wide variety of alarm mode selections
Bumpless transfer to manual mode during sensor failure
Universal input power, 90-264 VAC or 11-26 VAC/VDC
Power limiter output
RS-485 and RS-232 data communications interface
Bright 0.55″ (14 mm) red LED process display 0.40″ (10 mm) and green LED setpoint display stabilized with a digital filter if required
Fast input sample rate (5 samples/second)
Differential control
“Soft-Start” ramp and dwell timer
Analog input for remote setpoint and current transformer
Event input for changing functions and setpoint
Hardware lockout plus remote lockout protection
Loop break alarm
Analog retransmission
DC power supply outputs
Tempco’s most highly featured 1/4 DIN control
