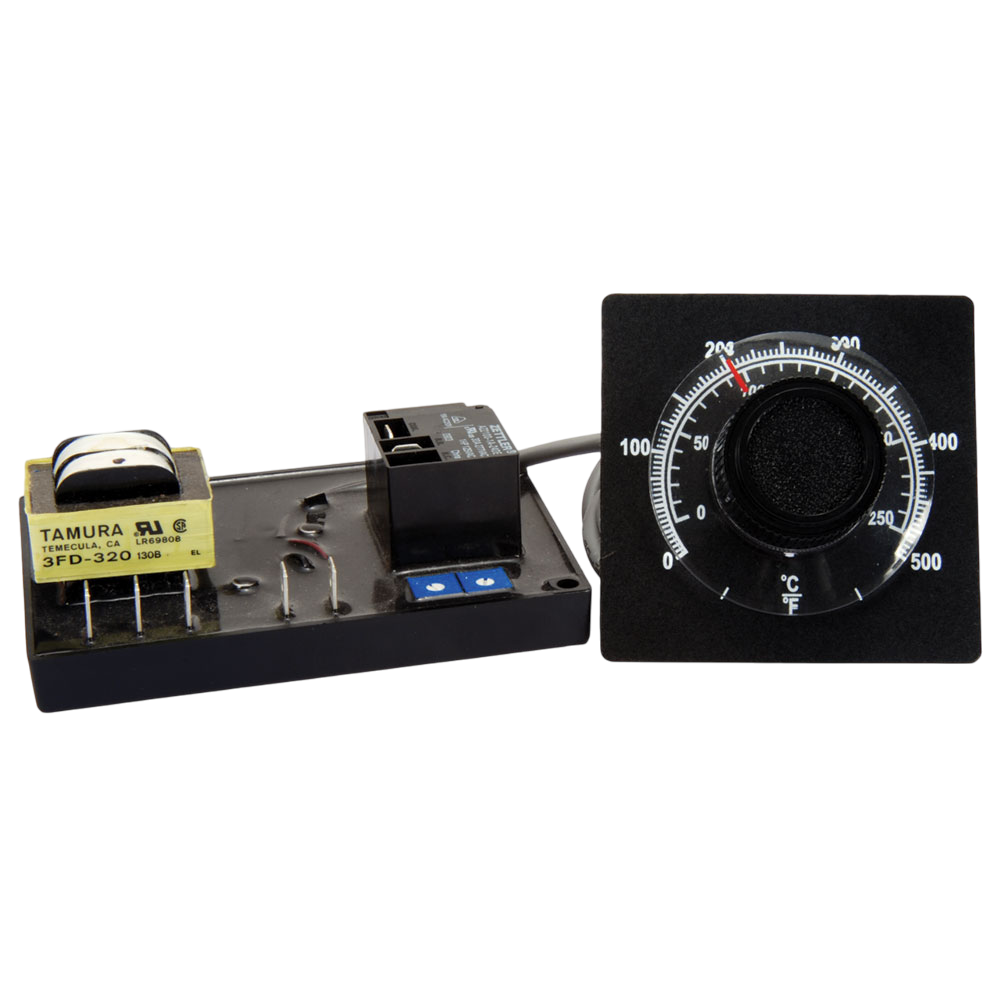

TKZ Encapsulated Temperature Controller
- The Encapsulated Design allows for use in areas of high humidity and components are less likely to be damaged in handling.
- 1/4″ Quick Disconnect terminals make installation a snap
- Heavy duty 30 Amp (UL rated 20 Amp) relay output
- Compact footprint can easily fit into most commercial or industrial equipment: 3.625″ × 2.625″ (92 × 67 mm)
- 120/240VAC Field Selectable
- Local, remote or fixed setpoint
Typical Applications
- Appliances
- Commercial Cooling
- Cooking Equipment
- Environmental Chambers
- Gas Analyzers
- Hot Stamping Machines
- Laboratory Baths
- Packaging Machines
- Refrigerators and Freezers
- Water Heaters
Specifications:
- Power Input: 120/240 VAC ±10%, 50/60 Hz
- Control Output: 30 Amp SPST Relay, UL rated 20 Amp, rated for 100,000 cycles
- Control Mode: On-Off with 4° hysteresis typical; contact factory for other hysteresis values
- Cold Junction Compensation: Automatic
- Sensor Fault Protection: Output de-energizes (contacts open) on thermocouple break
- Ambient Operating Temperature: 0 to 70°C
- Field Wiring Terminals: .250″ male quick connects
- Agency Approvals: UL and C-UL Recognized
Stock Dials & Knobs
(Dual Range °F/°C)
| Part Number | Dual Range |
|---|---|
| TKZ99001 | 32 to 500°F / 0 to 260°C |
| TKZ99002 | 32 to 1000°F / 0 to 550°C |
