Melt Bolt RTD's

Click or tap image to expand

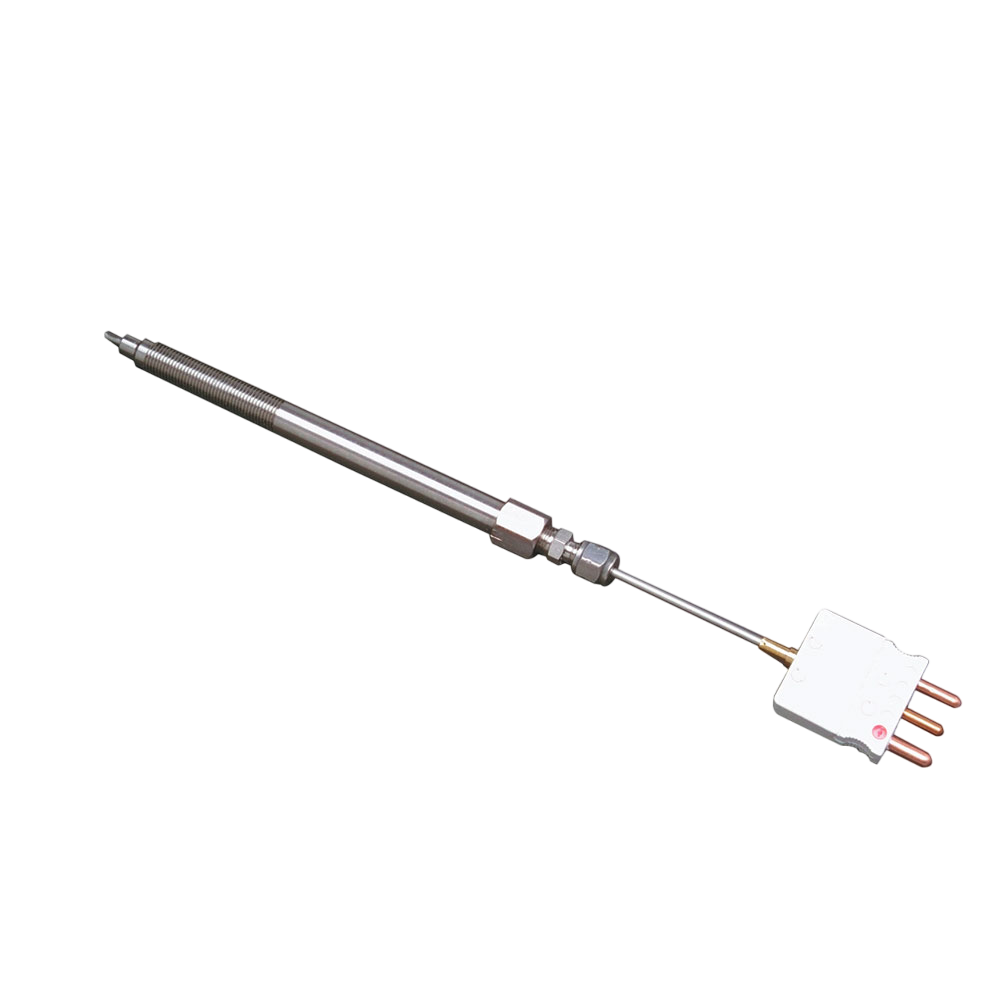

Melt Bolt RTD's

Melt Bolt RTD’s come in three styles. Visit the Preconfigured & Stock Parts page for complete part number details and ordering information. Style RT1—Adjustable Tip
  • Thermocouple tip immersion length can be field adjusted from flush to 2″
  • Eliminates excess inventory
Style RT2—Rigid Plug Mount Fixed Tip Style RT3—Flexible Mounted Plug
Save for Quote
Design Features:
  • 3/16″ diameter Probe
  • 100 ohm Class B element per IEC 751
  • 3-wire circuit
  • Can be installed wherever standard melt thermocouples are used
  • Operating tempertures:
    • 392°F (200°C) standard
    • 900°F (482°C) available
  • Available in 3″ and 6″ bolt designs
  • Bolts and Probes are 300 series stainless steel

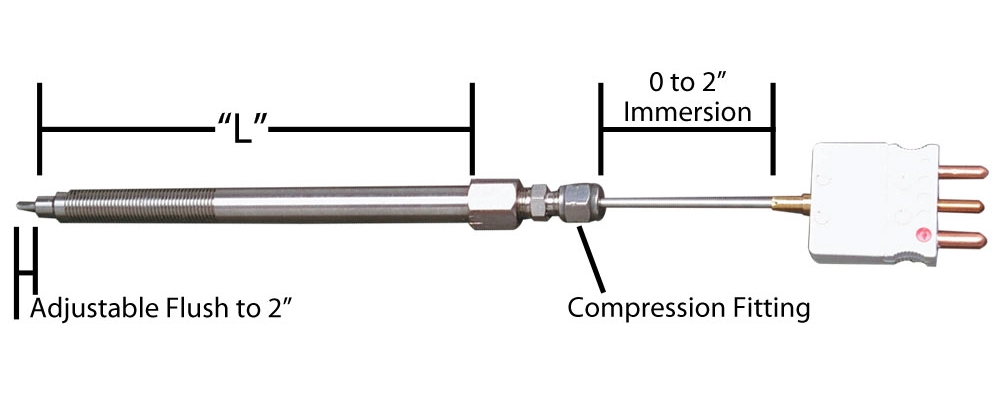

Style RT1 – Adjustable Tip

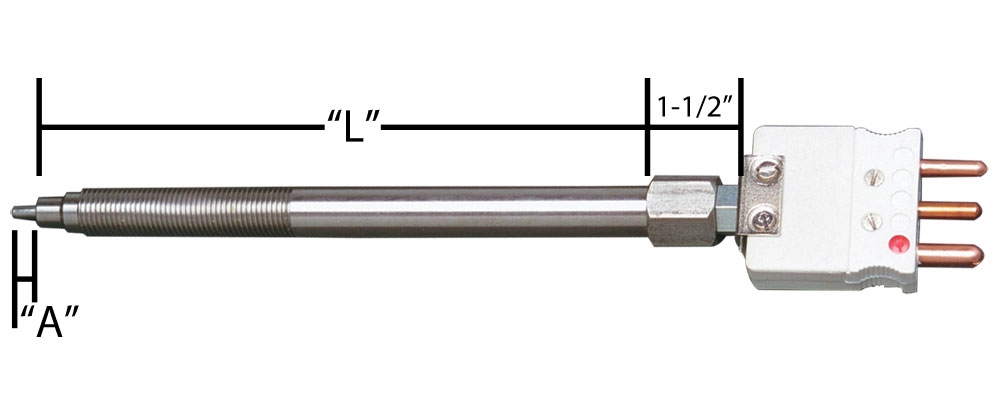

Style RT2 – Rigid Plug Mount Fixed Tip

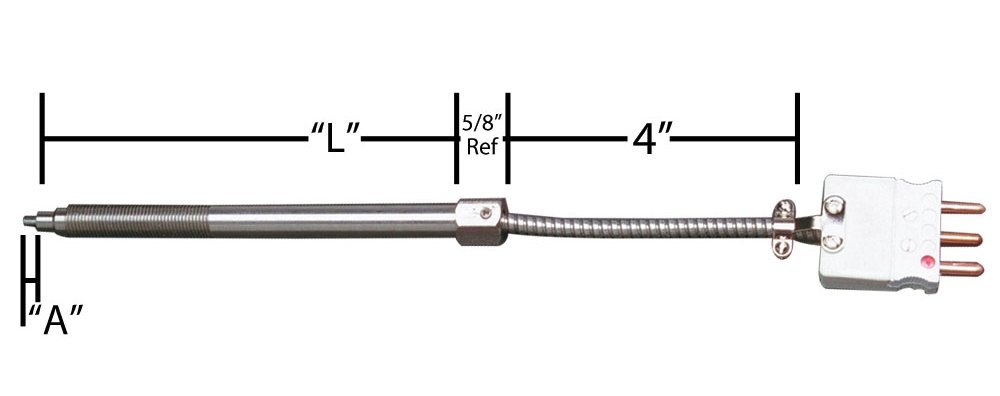

Style RT3 – Flexible Mount Plug
