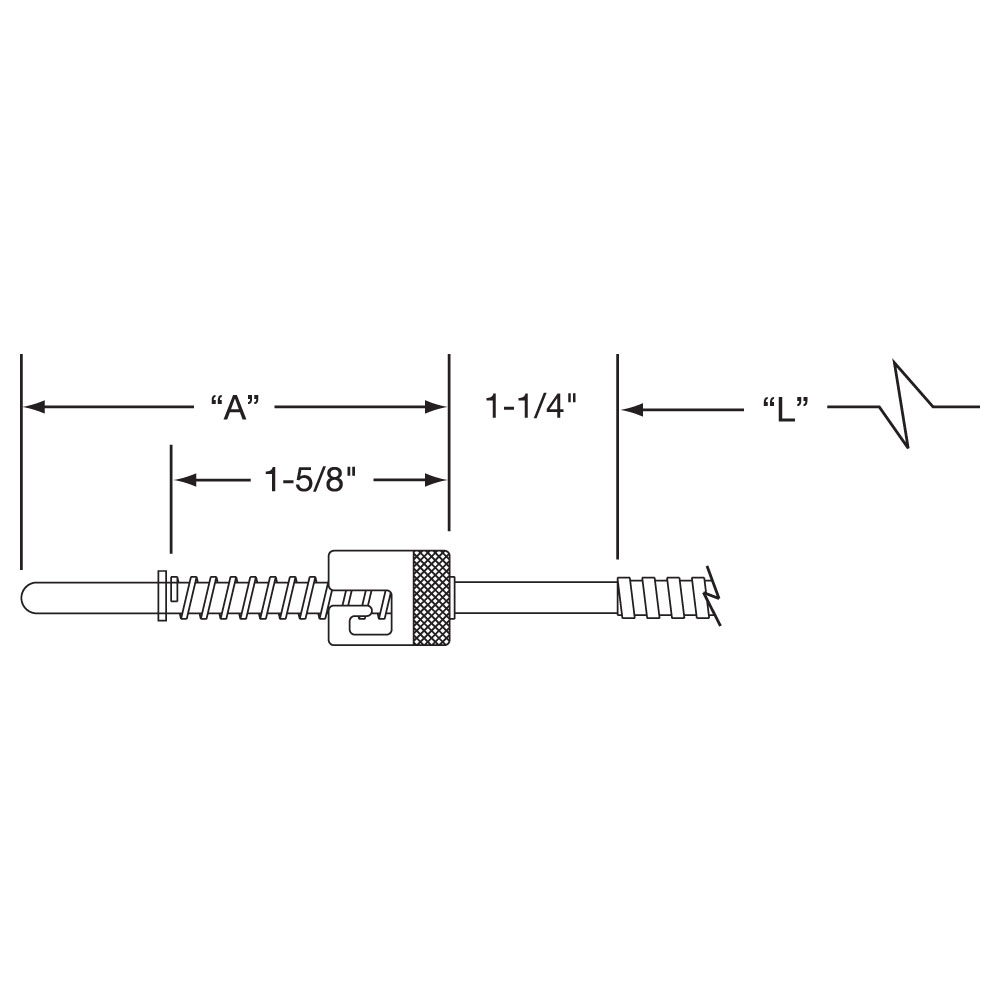

Rigid Bayonet Style RTD's
Style 3 – Rigid Straight Bayonet RTD Style 4 – Rigid 45° Bend Bayonet RTD Style 5 – Rigid 90° Bend Bayonet RTD
- 3/16″ diameter stainless steel probe
- Operating temperature: 392°F (200°C) standard 900°F (482°C) available
- 392°F (200°C) standard
- 900°F (482°C) available
- One-time adjustable 1/8″-27 NPT brass compression fitting
- 3-wire circuit
- 100 ohms Class B element per IEC 751
- Can be installed wherever existing thermocouples of similar designs are used
Optional rtd Termination Styles
