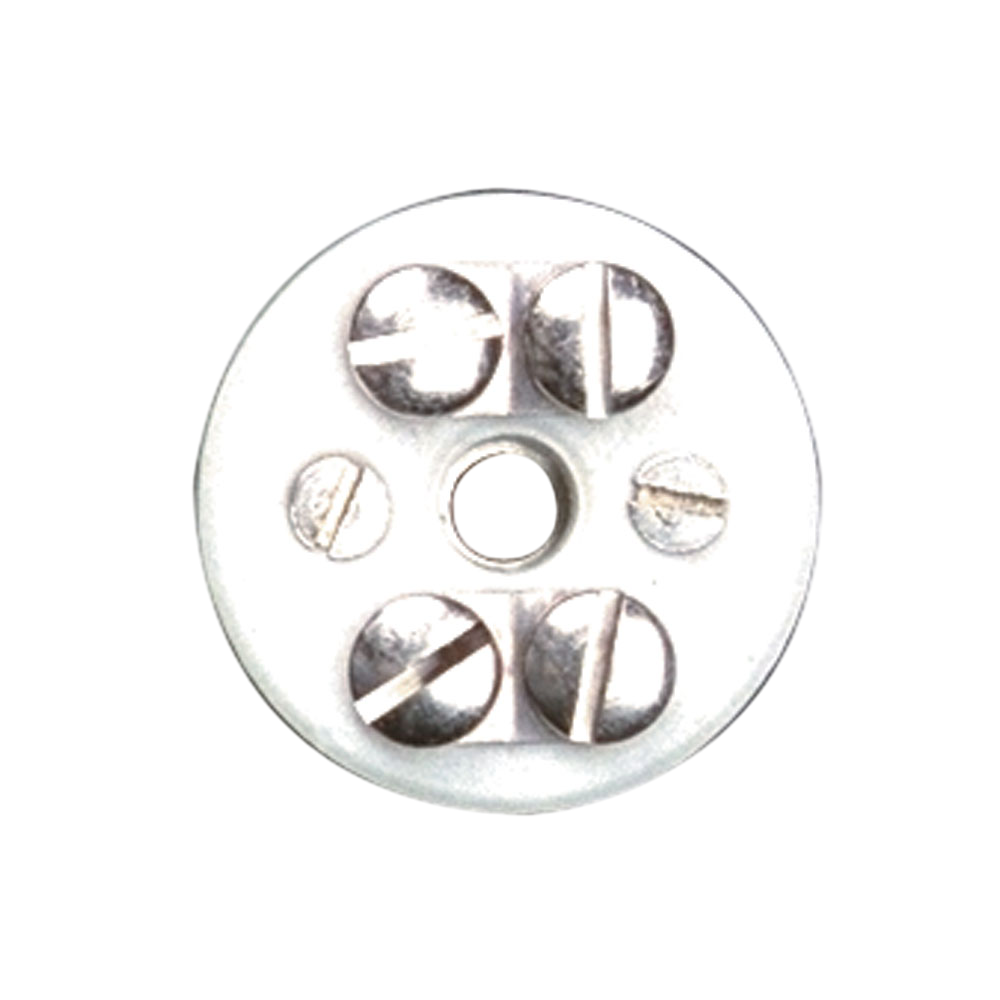

Open Disc Terminal Blocks
Ceramic discs are rated for 1000°F (530°C) and silicone/glass fiber discs are rated for 350°F (117°C). Each disc is assembled to a 1″ O.D. × 1/8″ thick brass (standard) or optional stainless steel back-up plate by two screws, and the plate is directly brazed to the sensor sheath.

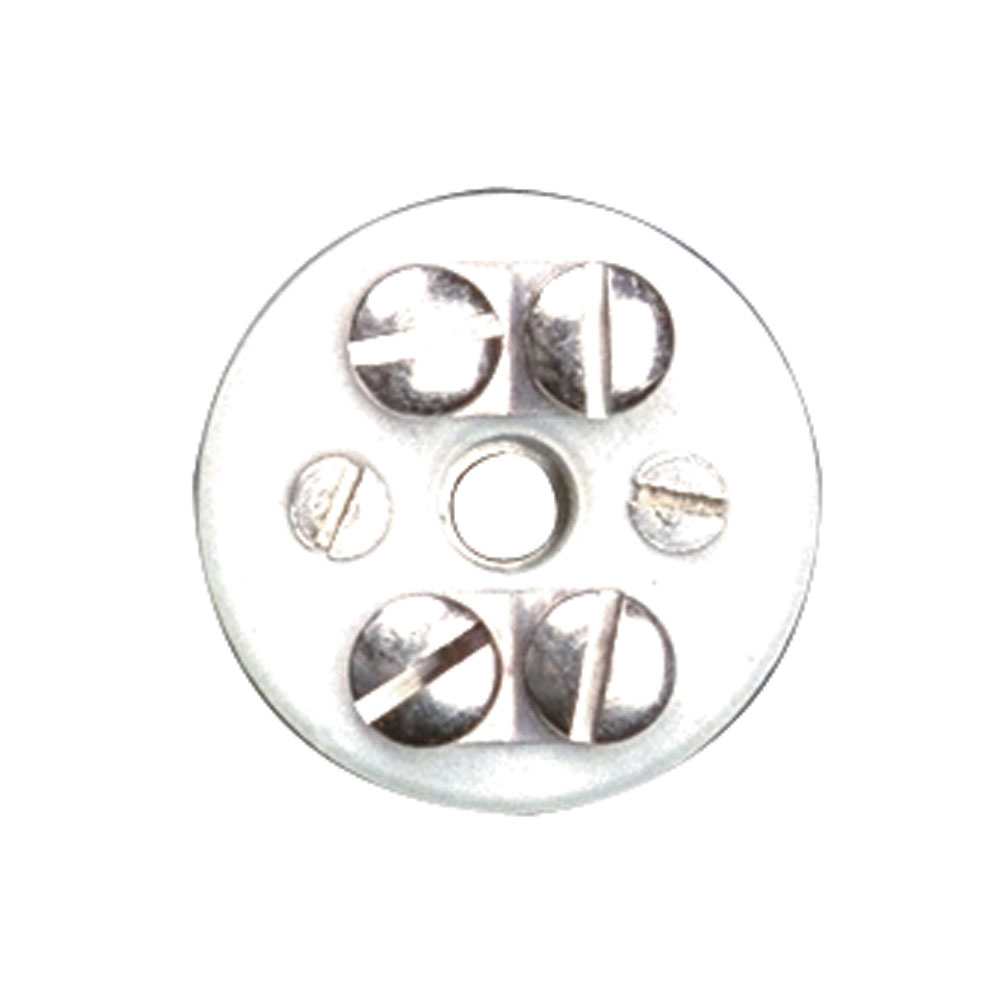

Ceramic Disc for
Single Element
Part Number: TCA-110-126

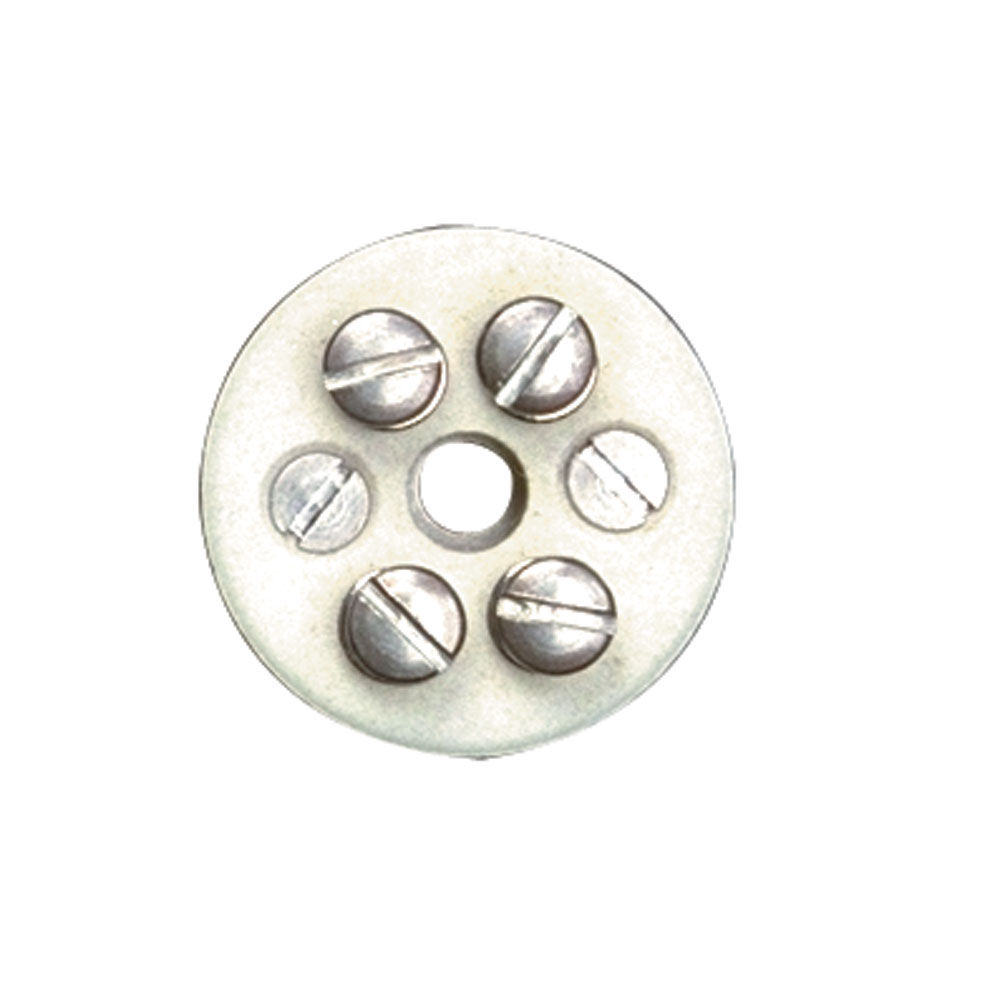

Ceramic Disc for
Dual Elements
Part Number: TCA-110-127

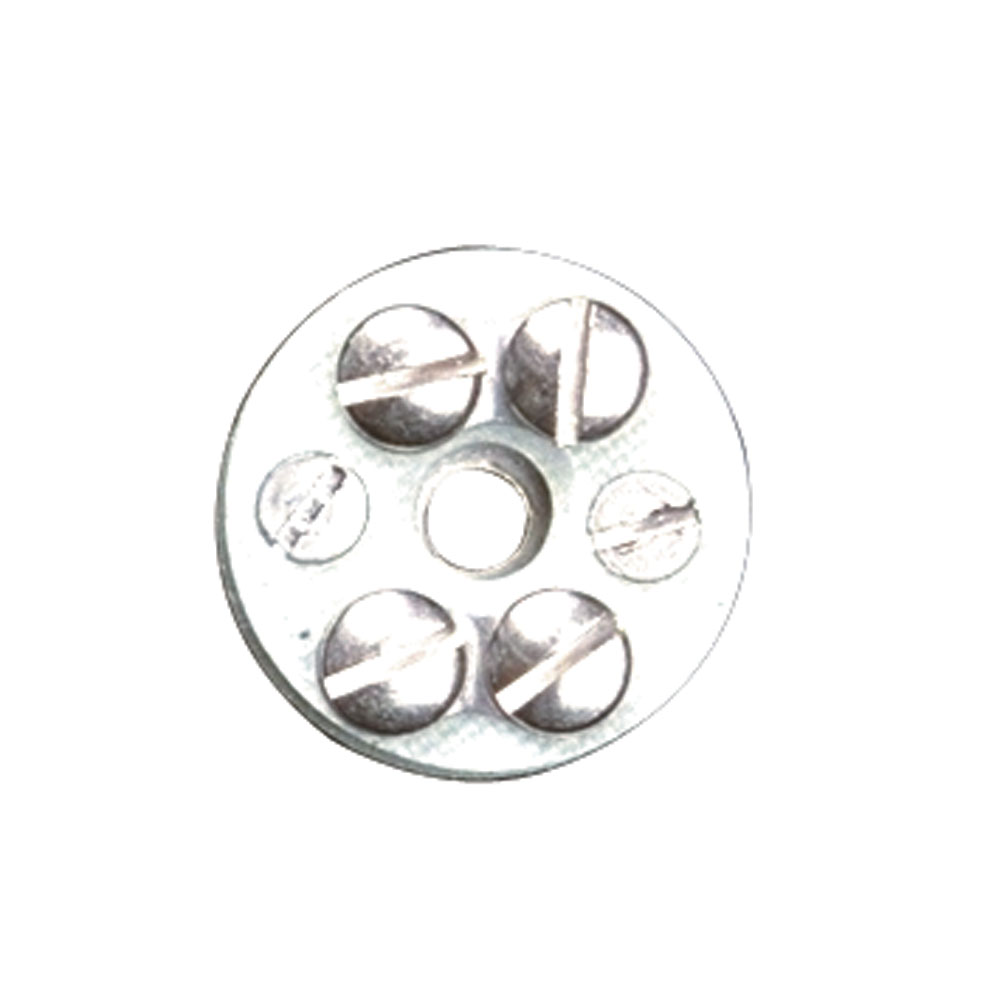

Silicone/Glass Fiber for
Single Element Only
Part Number: TCA-110-128
Ceramic Disc
for Six Wire
Part Number: TCA-110-129
Ceramic Open Disc with Brass Back-Up Plate and Mounting Screws
| Sheath O.D. (in) | Single/Dual Element Approximate Dimensions (in) | Part Numbers | Six Wire Element Approximate Dimensions (in) | ||
|---|---|---|---|---|---|
| Single Element | Dual Element | Six Wire Element | |||
| 1/8 | 11/8 O.D. × 9/16 H | TCH10045 | TCH10048 | TCH10051 | 21/32 O.D. × 9/16 H |
| 3/16 | 11/8 O.D. × 9/16 H | TCH10046 | TCH10049 | TCH10052 | 21/32 O.D. × 9/16 H |
| 1/4 | 11/8 O.D. × 9/16 H | TCH10047 | TCH10050 | TCH10053 | 21/32 O.D. × 9/16 H |
Ceramic Open Disc with Brass Back-Up Plate and Mounting Screws
| Sheath O.D. (in) | Single/Dual Element Approximate Dimensions (in) | Part Numbers | Six Wire Element Approximate Dimensions (in) | ||
|---|---|---|---|---|---|
| Single Element | Dual Element | Six Wire Element | |||
| 1/8 | 11/8 O.D. × 9/16 H | TCH10054 | TCH10057 | TCH10060 | 21/32 O.D. × 9/16 H |
| 3/16 | 11/8 O.D. × 9/16 H | TCH10055 | TCH10058 | TCH10061 | 21/32 O.D. × 9/16 H |
| 1/4 | 11/8 O.D. × 9/16 H | TCH10056 | TCH10059 | TCH10062 | 21/32 O.D. × 9/16 H |
Silicone/Glass Fiber Open Disc with Brass Back-Up Plate and Mounting Screws
| Sheath O.D. (in) | Approximate Dimensions (in) | Part Number | |
|---|---|---|---|
| Single Element | Dual Element | ||
| 1/8 | 1″ O.D. × 9/16 H | TCH10063 | n/a |
| 3/16 | 1″ O.D. × 9/16 H | TCH10064 | n/a |
| 1/4 | 1″ O.D. × 9/16 H | TCH10065 | n/a |
Silicone/Glass Fiber Open Disc with Stainless Brass Back-Up Plate and Mounting Screws
| Sheath O.D. (in) | Approximate Dimensions (in) | Part Number | |
|---|---|---|---|
| Single Element | Dual Element | ||
| 1/8 | 1″ O.D. × 9/16 H | TCH10066 | n/a |
| 3/16 | 1″ O.D. × 9/16 H | TCH10067 | n/a |
| 1/4 | 1″ O.D. × 9/16 H | TCH10068 | n/a |
