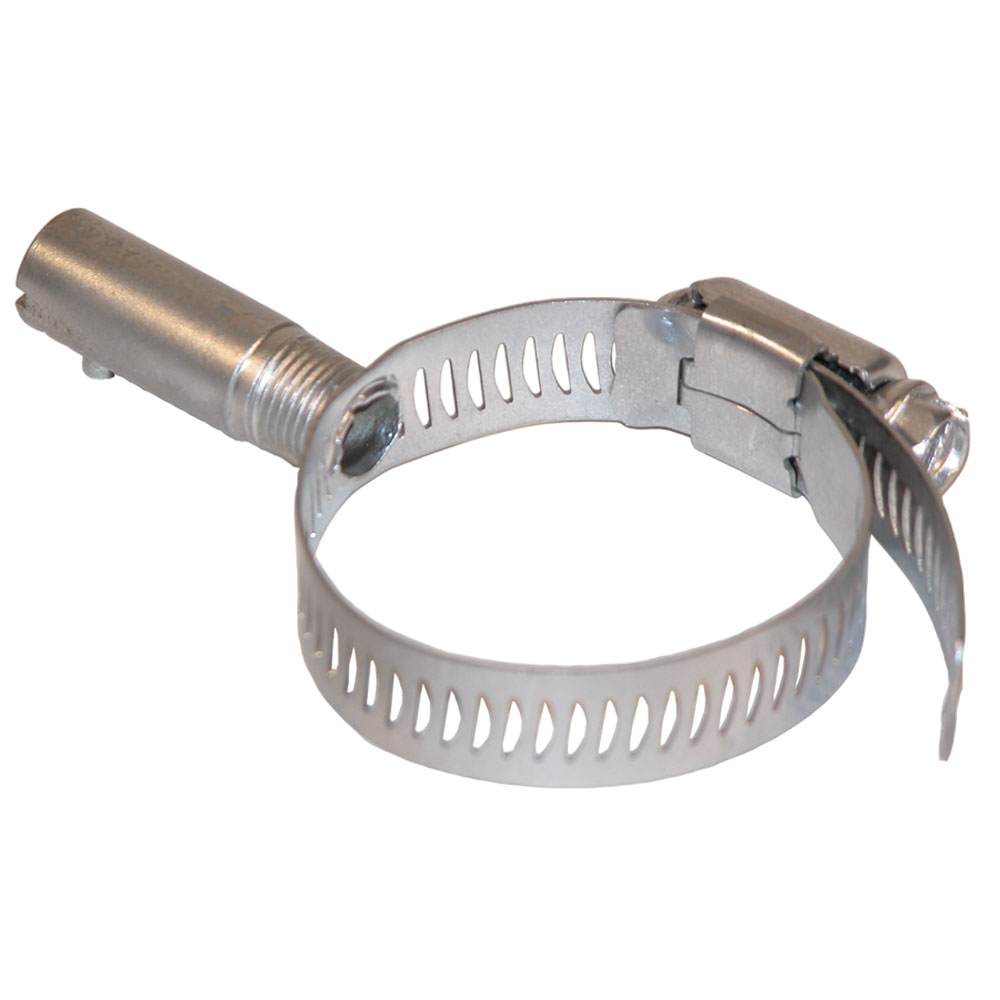

Pipe Clamp Adapters
Spring-loaded bayonet cap type thermocouples are used in conjunction with bayonet adapters. After inserting the thermocouple sheath through the adapter the spring is compressed and locked by the cap. Scroll table to view all Scroll table to view all Scroll table to view all
| Part Number | Pipe Diameter (in) | |
|---|---|---|
| Min. | Max. | |
| TCH00001 | 1⁄2 | 7⁄8 |
| TCH00002 | 7⁄8 | 11⁄2 |
| TCH00003 | 15⁄16 | 21⁄4 |
| TCH00004 | 21⁄4 | 35⁄16 |
| TCH00005 | 35⁄16 | 41⁄4 |
| TCH00006 | 45⁄16 | 51⁄4 |
