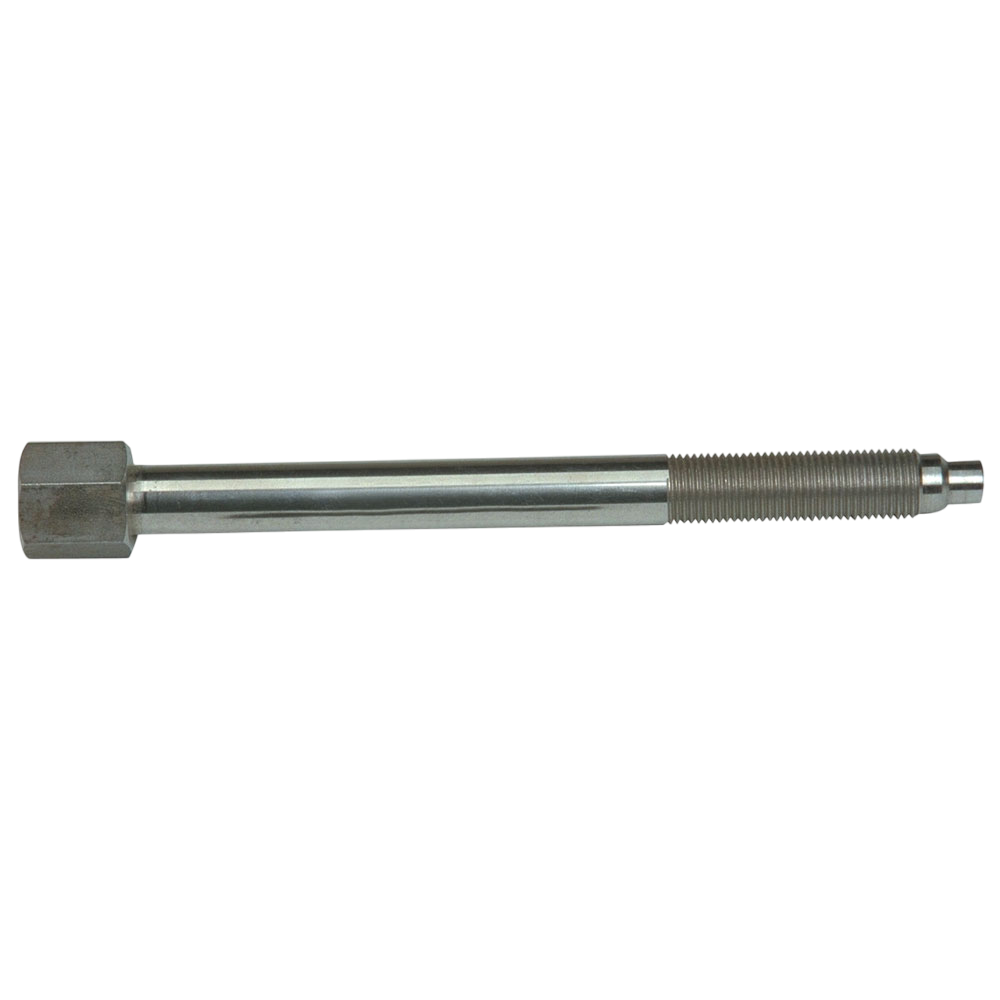

Plastic Melt Bolts
Bolts are made from 300 series Stainless Steel. See Melt Bolt Thermocouples for Style R and Style F details.
Detailed Dimensions for Plastic Melt Bolts
Bolt-Tip Dimensions
Recommended Drilling Dimensions for Proper Mounting in Extruder
| Length “L” | Blank | With 1⁄8″ Diameter Hole | With Teflon® Insert | To make Style “R” * | To make Style “R” w/Teflon® insert * | To make Style “F” | To make Style “F” w/Teflon® Insert |
|---|---|---|---|---|---|---|---|
| 3″** | FAS-116-101 | FAS-116-103 | FAS-116-105 | FAS-116-107 | FAS-116-109 | FAS-116-111 | FAS-116-113 |
| 6″** | FAS-116-102 | FAS-116-104 | FAS-116-106 | FAS-116-108 | FAS-116-110 | FAS-116-112 | FAS-116-114 |
* Includes hardware to mount plug
** 300 series stainless steel
