Plug and Jack Accessories

Click or tap image to expand

Plug and Jack Accessories

Accessories for standard and miniature plugs and jacks:
  • Cable clamps
  • Grommets
  • Washers
  • Inserts
  • Adapters
  • Boots
  • Brackets
  • Plate Sets
Save for Quote

Cable Clamps, Grommets and Washers

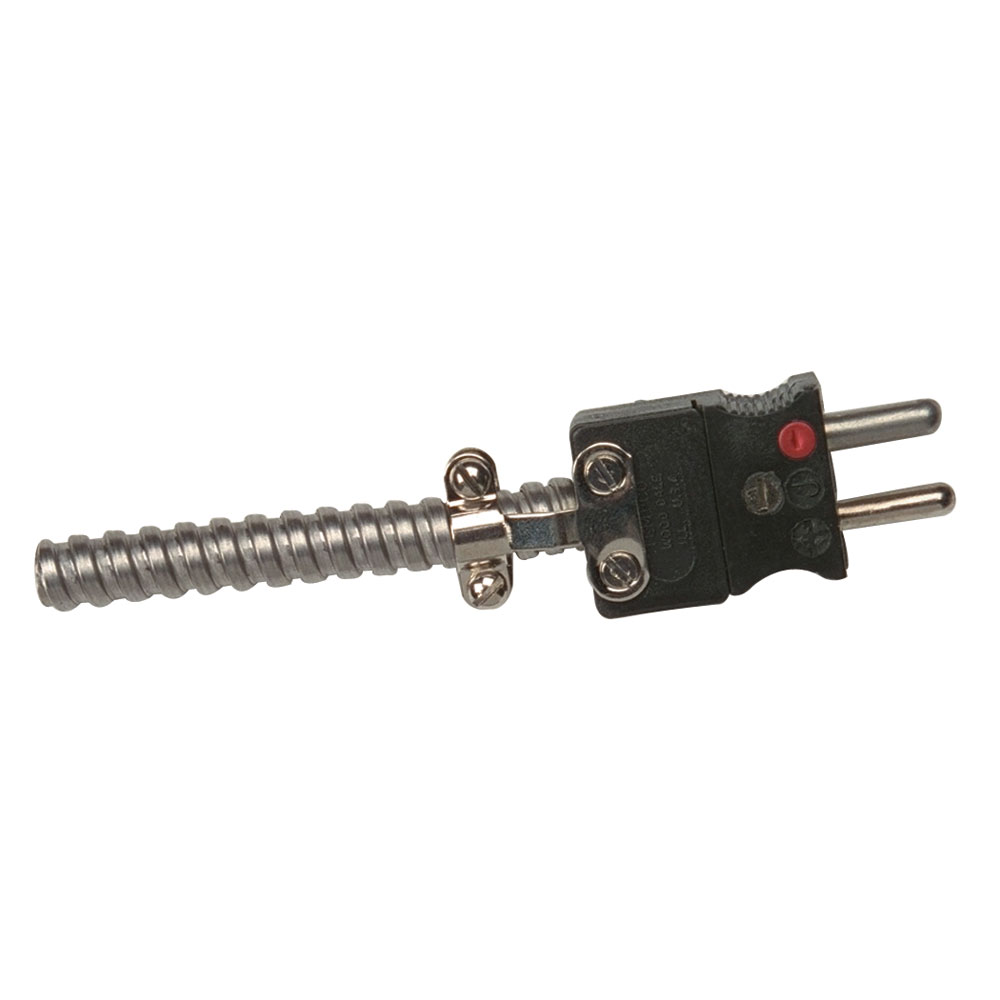

Cable Clamp

For 3/8″ Diameter sheath or 1/4″ armor cable
*Part Number: TCA-107-102

*Part Discontinued.
Please use TCA-107-106 pictured to the right.

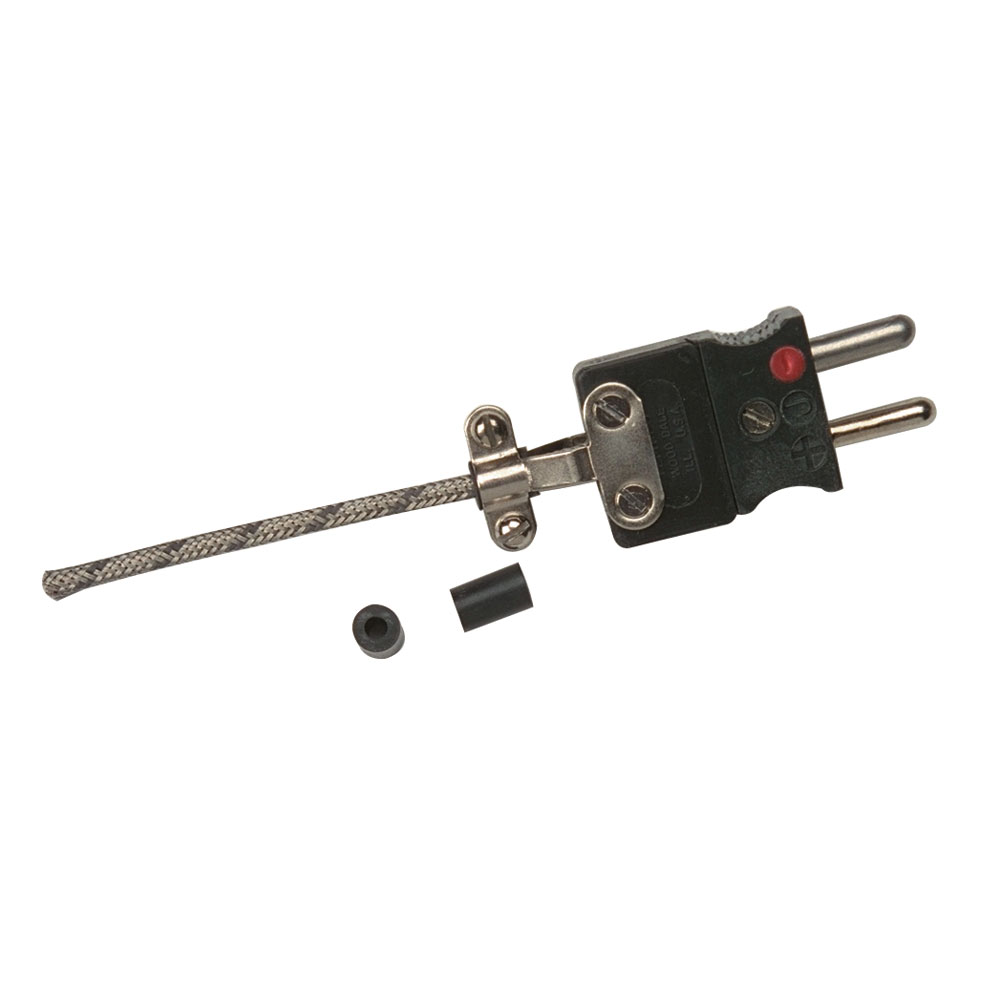

Clamp and Grommet

For Standard Size Plugs and Jacks, can be used with Lead Wire or Armor Cable
Cable Clamp Part Number: TCA-107-106
Neoprene Grommet Part Number: TCA-109-102

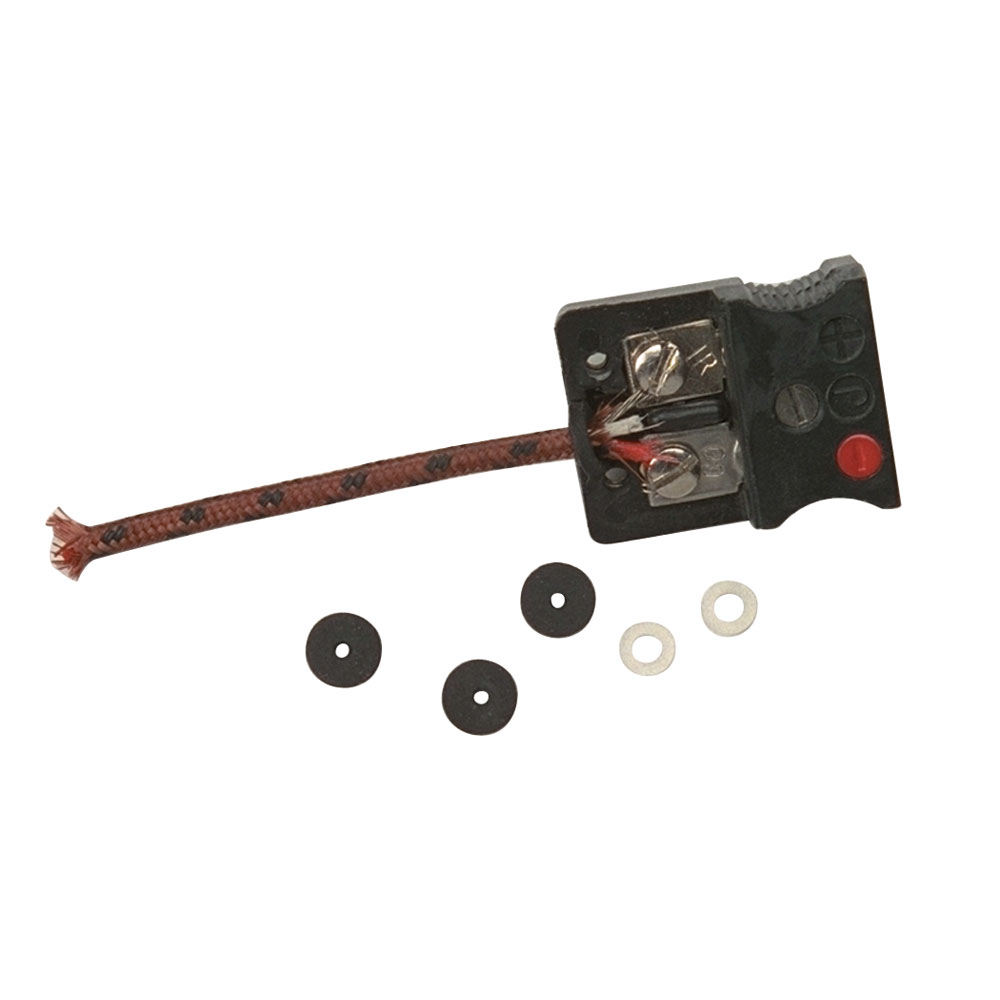

Grommets and Washers

Grommets used in place of Cable Clamp
Part Number: TCA-109-105

Washer protects fine wire from breakage
Part Number: TCA-120-101

Dual Cable Clamps

  • Assemble Standard Connectors into Dual Connectors
  • Accommodate either One or Two Lead-In Cables
  • Use 2-Pin Connectors only

Part Number: TCA-107-103

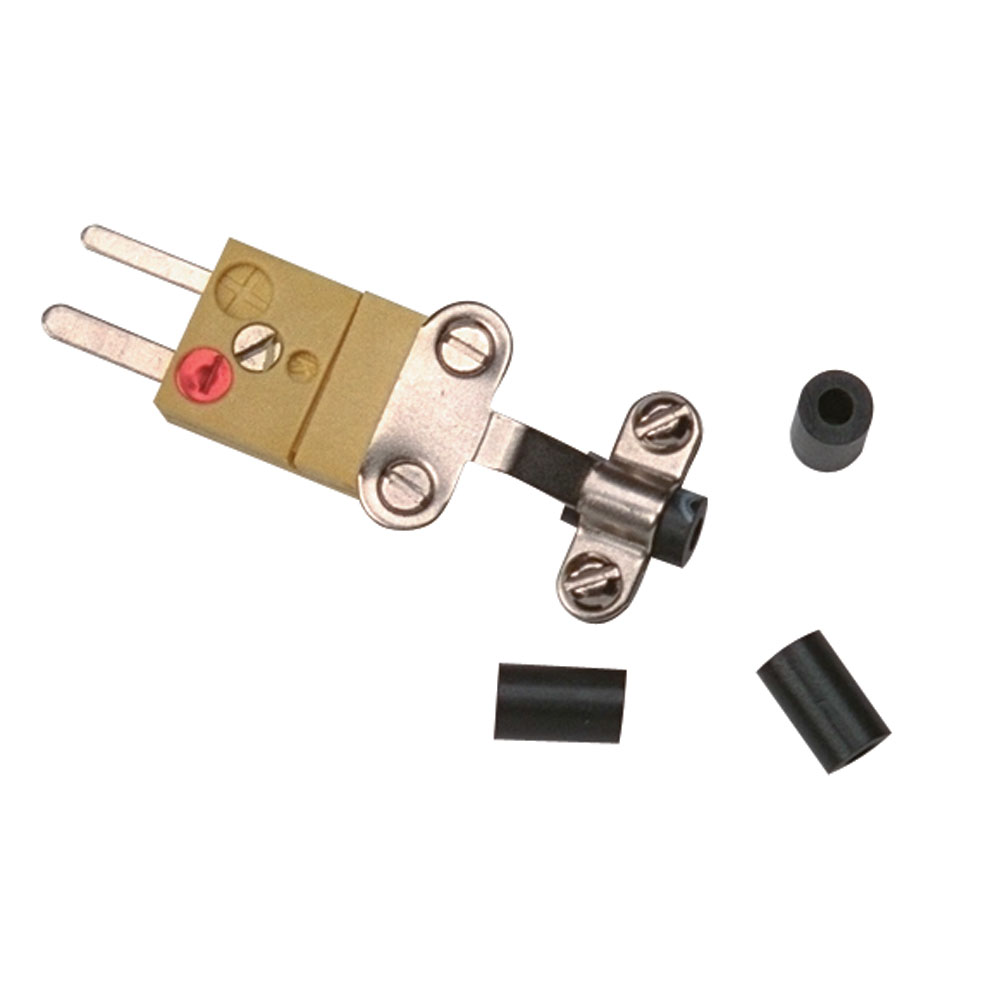

Cable Clamps and Grommets for Miniature Plugs and Jacks

Cable Clamp (For 2-Pin Miniature)
Part Number: TCA-107-105

Cable Clamp (For 3-Pin Miniature)
Part Number: TCA-107-109

Neoprene Grommet
Part Number: TCA-109-102

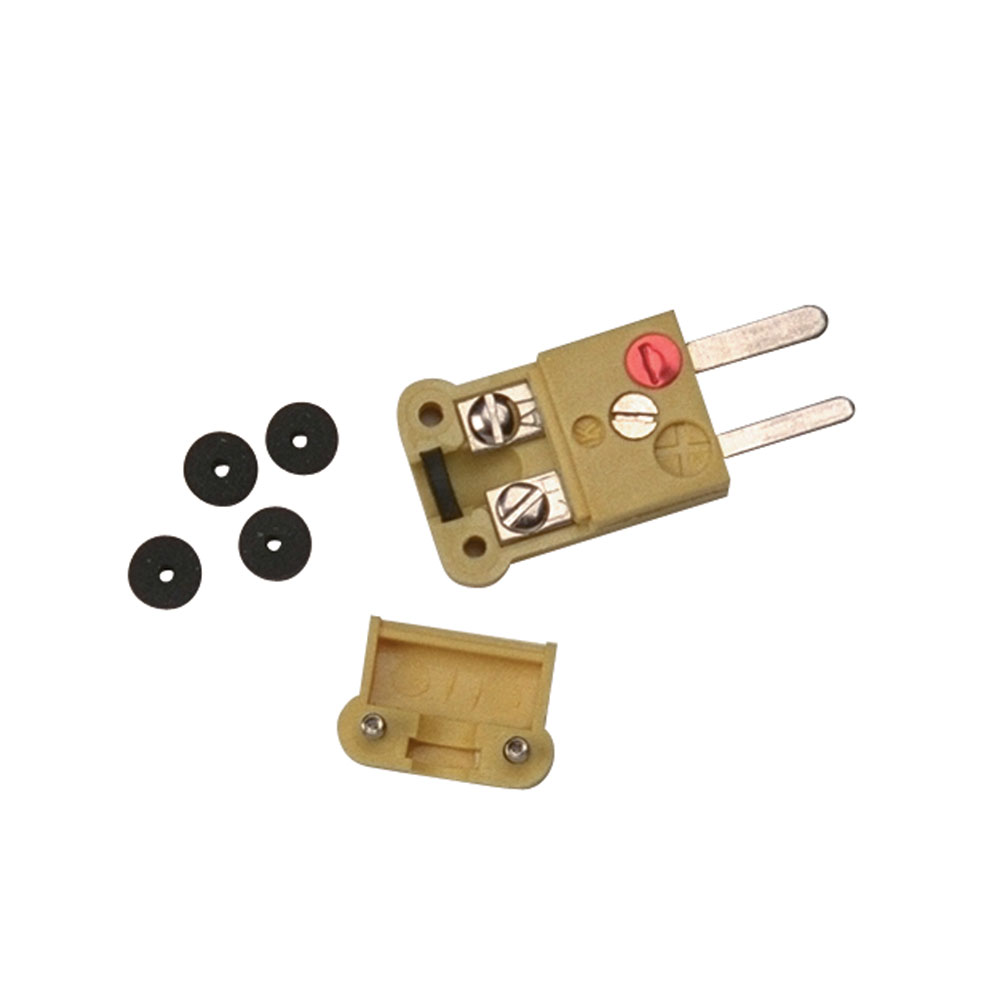

Neoprene Wire Entrance Grommets
Nylon Wire Protection Washers

  • For all Miniature Connectors
  • Grommet is used in place of cable clamp
  • Washer protects fine wire from breakage Grommet

Part Number: TCA-109-104
Washer Part Number: TCA-120-102

Inserts

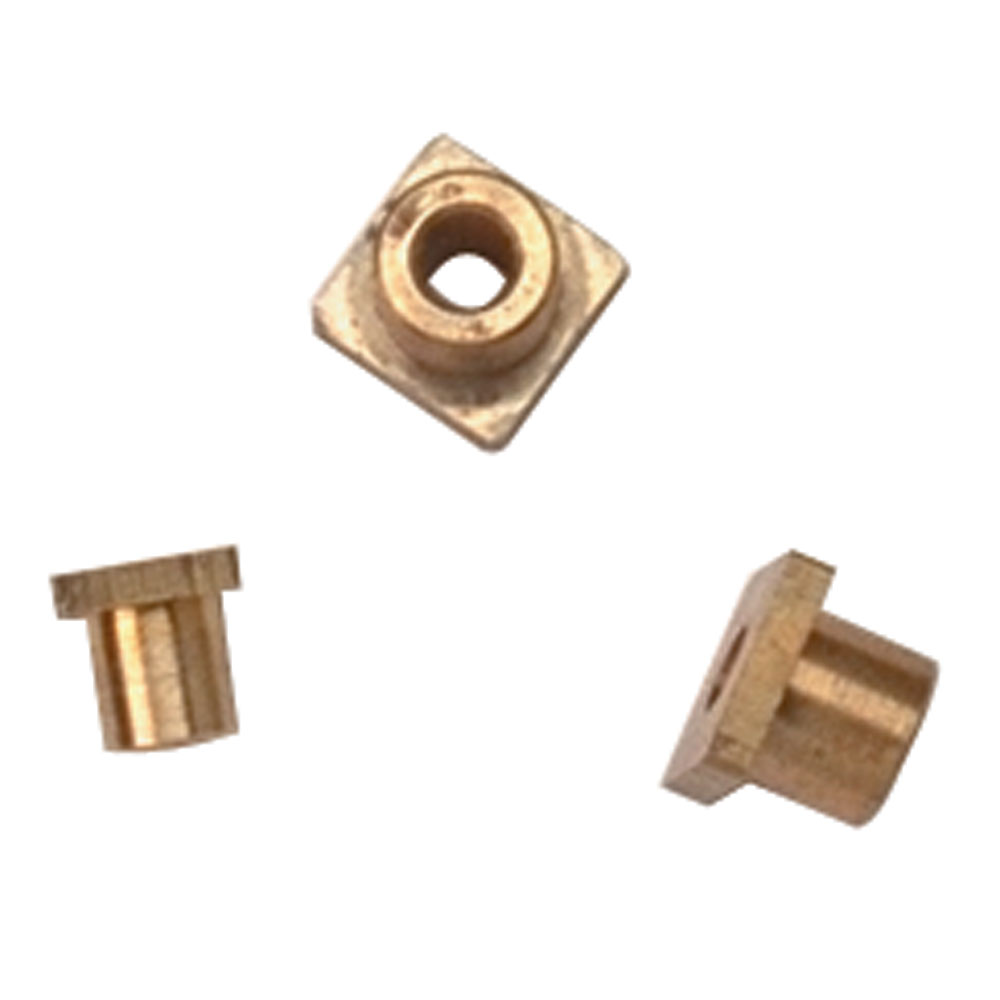

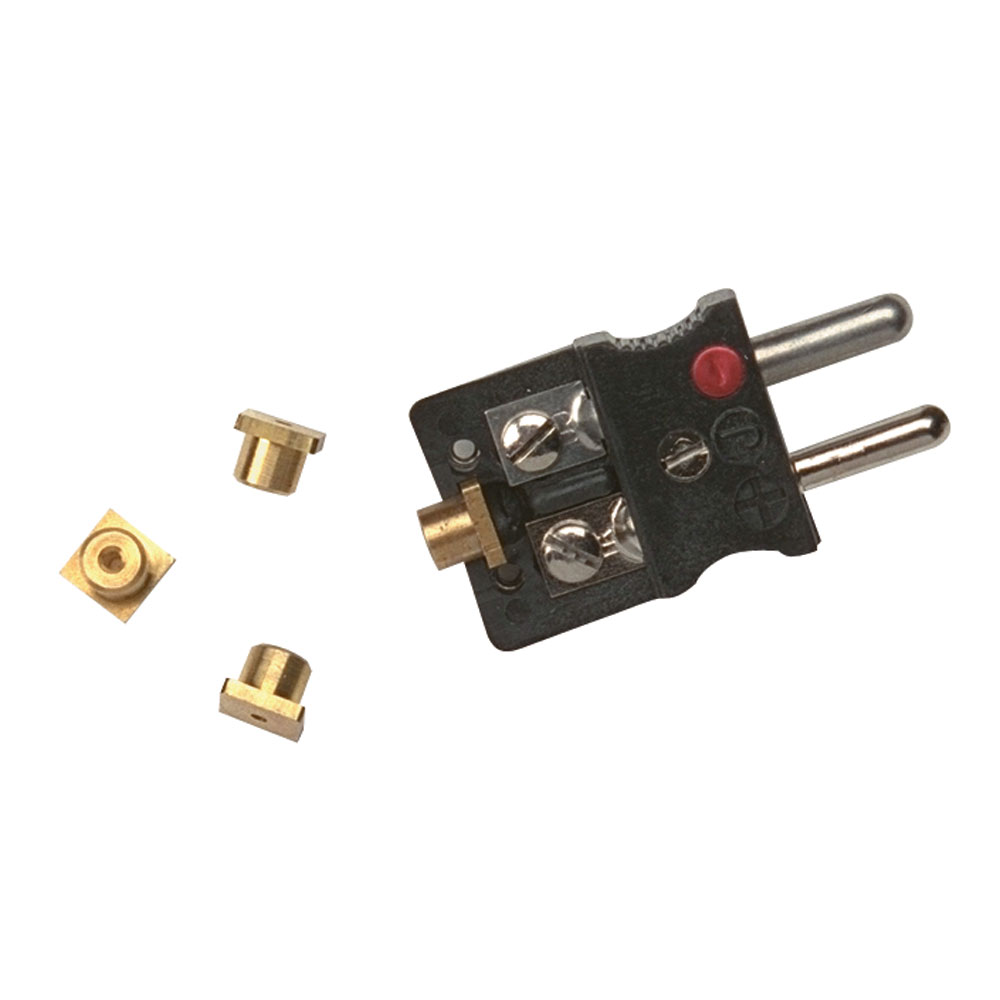

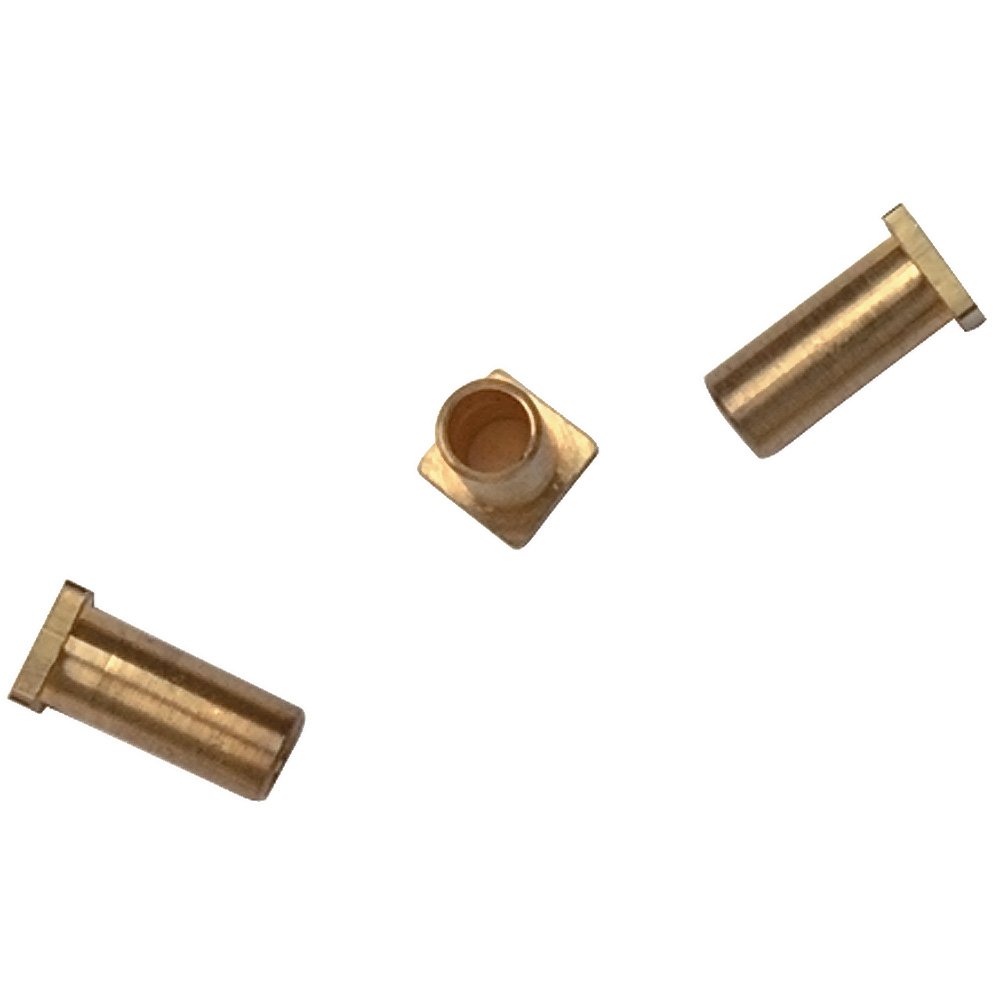

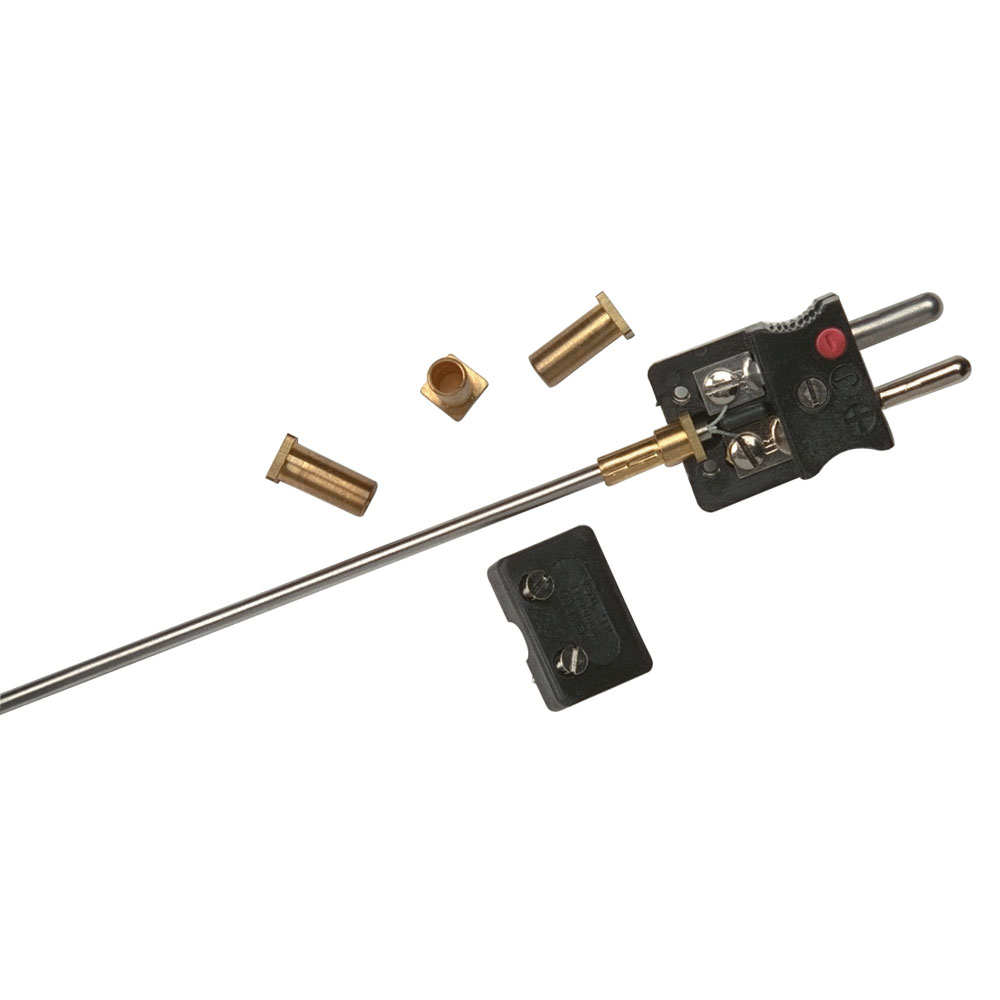

Brass Crimping Inserts

Used primarily with TEMPCO-PAK

Sheath DiameterPart
Number
inmm
UndrilledTCA-112-101
0.0200.5TCA-112-102
0.0401.0TCA-112-103
0.0631.6TCA-112-104
0.1253.17TCA-112-105
0.1884.77TCA-112-106
0.2506.35TCA-112-107
0.1183.0TCA-112-108
0.1774.5TCA-112-109
0.2366.0TCA-112-110
Brass Brazing Inserts

Can be used with Tubing or TEMPCO-PAK

Sheath DiameterPart
Number
inmm
UndrilledTCA-113-101
0.0200.5TCA-113-102
0.0401.0TCA-113-103
0.0631.6TCA-113-104
0.1253.17TCA-113-105
0.1884.77TCA-113-106
0.2506.35TCA-113-107
0.2366.0TCA-113-108
Crimping and Inserts

Brass Crimping/Brazing Inserts for Ultra-Temp Plugs & Jacks

Sheath
Diameter		Part
Number
0.040″TCA-112-119
0.062″TCA-112-117
0.125″TCA-112-118
0.188″TCA-112-120
0.250″TCA-112-121

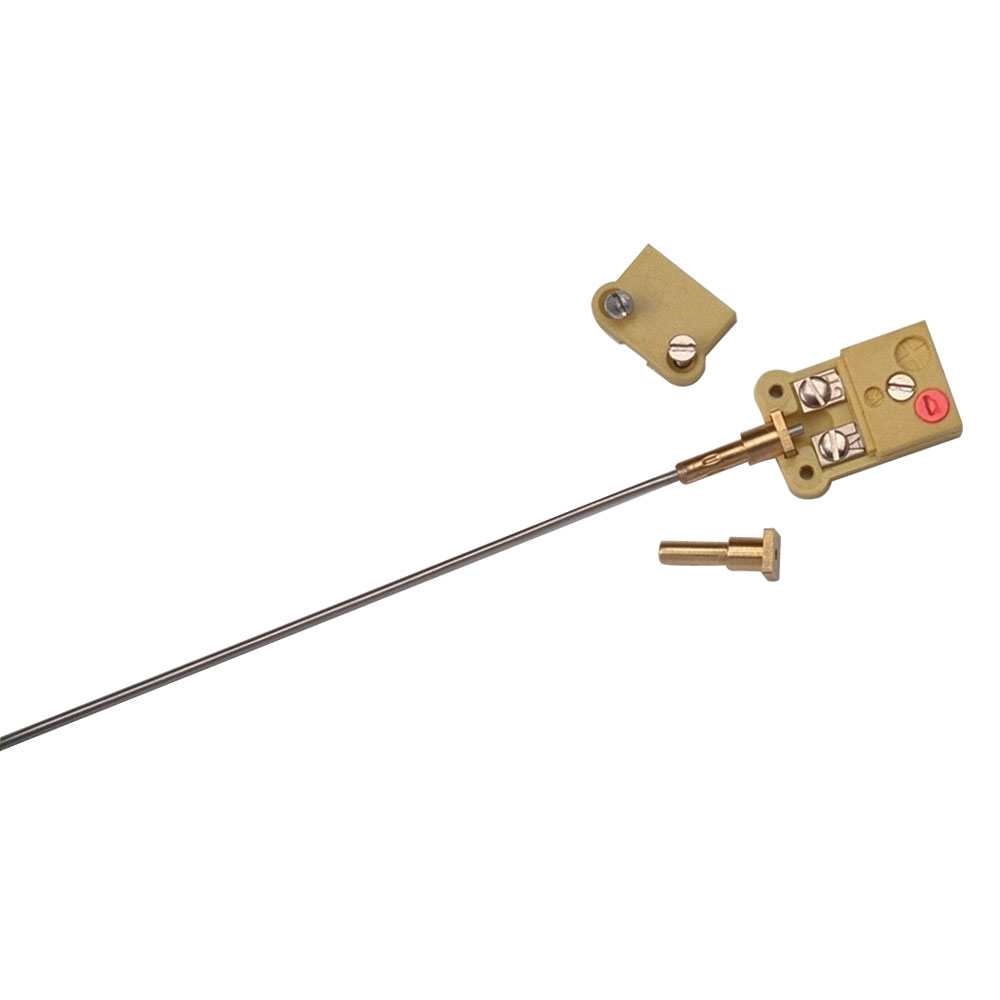

Crimping Inserts for Miniature Plugs and Jacks
  • For all Miniature Connectors
  • Used primarily with TEMPCO-PAK
Sheath DiameterPart
Number
(in)(mm)
UndrilledTCA-112-111
0.020.50TCA-112-112
0.041TCA-112-113
0.0631.6TCA-112-114
0.1253.17TCA-112-115
0.1884.77TCA-112-116
Brazing Inserts for Miniature Plugs and Jacks
  • For all Miniature Connectors
  • Can be used with Tubing or TEMPCO-PAK
Sheath DiameterPart
Number
(in)(mm)
UndrilledTCA-113-116
0.020.50TCA-113-117
0.041TCA-113-118
0.0631.6TCA-113-119
0.1253.17TCA-113-120
0.1884.77TCA-113-121

Inserts

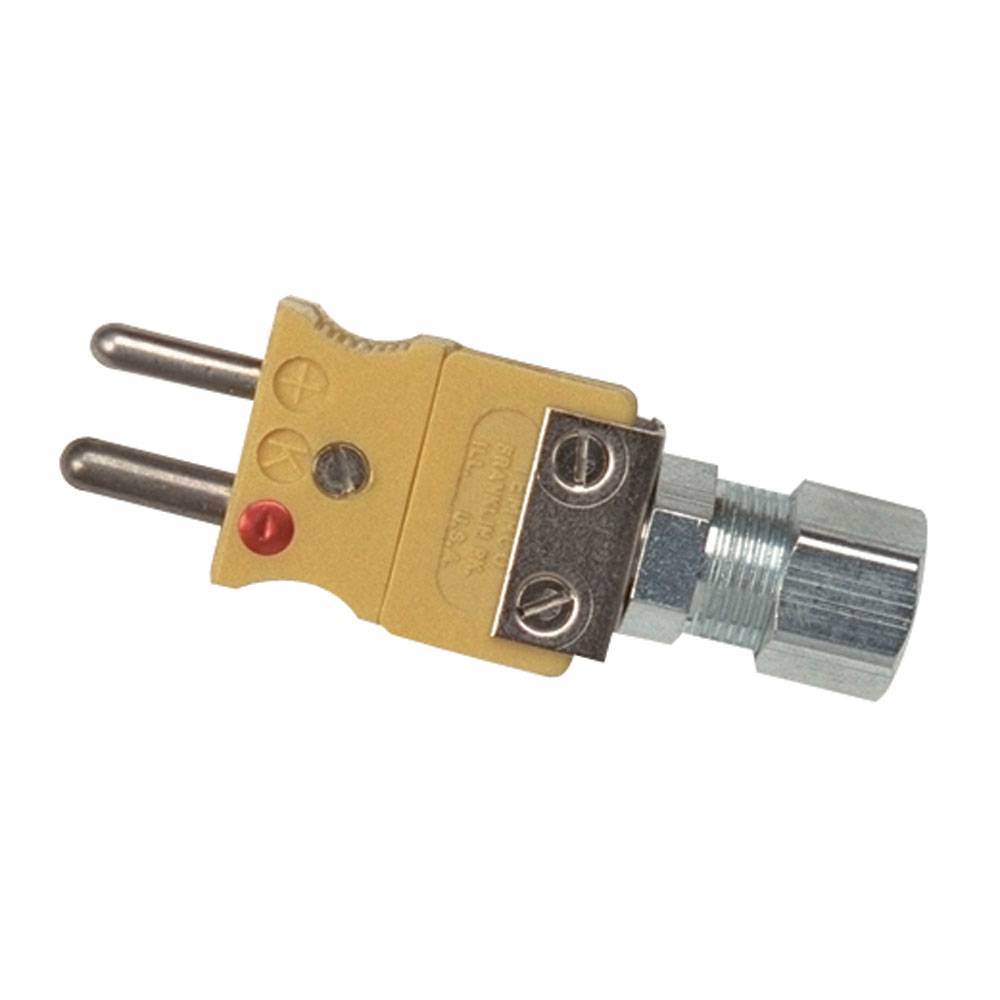

Standard Tube Adapters

Affords higher degree of stability to Plug or Jack

Sheath
Diameter 		Part
Number
0.040″ TCA-103-106
0.063″ TCA-103-102
0.125″ TCA-103-101
0.188″ TCA-103-103
0.250″ TCA-103-104
0.313″ TCA-103-107
0.375″ TCA-103-108

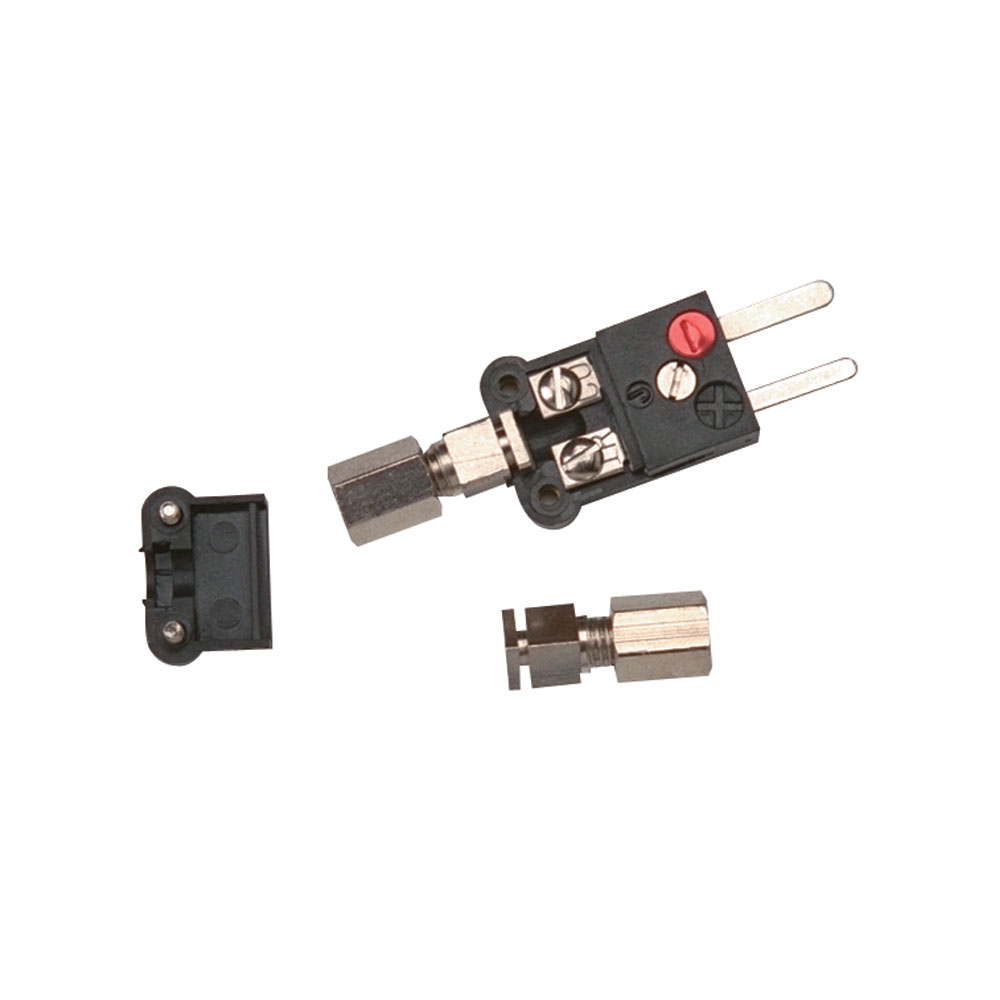

Insert Tube Adapter

Secured by slots in body of the Plug or Jack (2-Pin or 3-Pin)

Sheath
Diameter 		Part
Number
0.040″ TCA-103-109
0.063″ TCA-103-110
0.125″ TCA-103-111

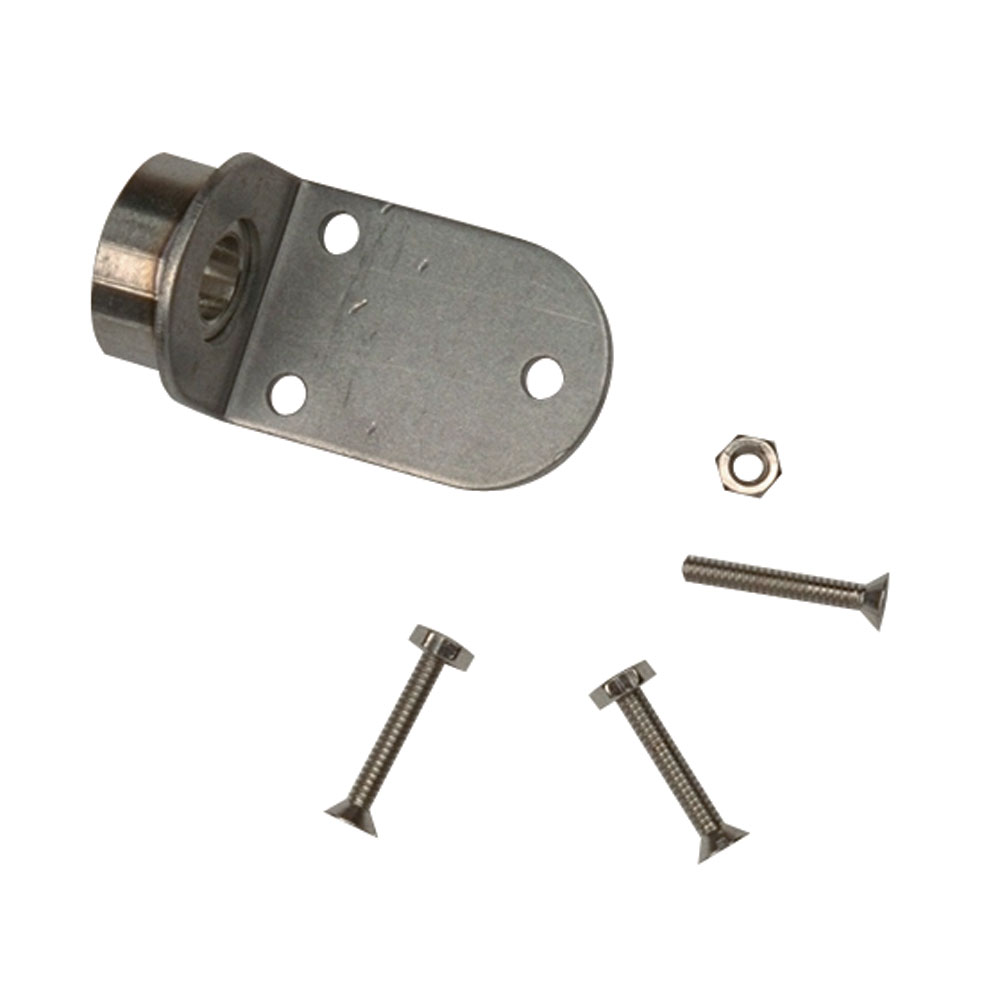

Stainless Steel Spool-Type Brazing Adapters
  • Provides maximum rigidity to Plug or Jack
  • For 2-Pin connectors only
Sheath
Diameter 		Part
Number
Undrilled TCA-113-109
0.063″ TCA-113-110
0.125″ TCA-113-111
0.188″ TCA-113-112
0.250″ TCA-113-113
0.313″ TCA-113-114
0.375″ TCA-113-115

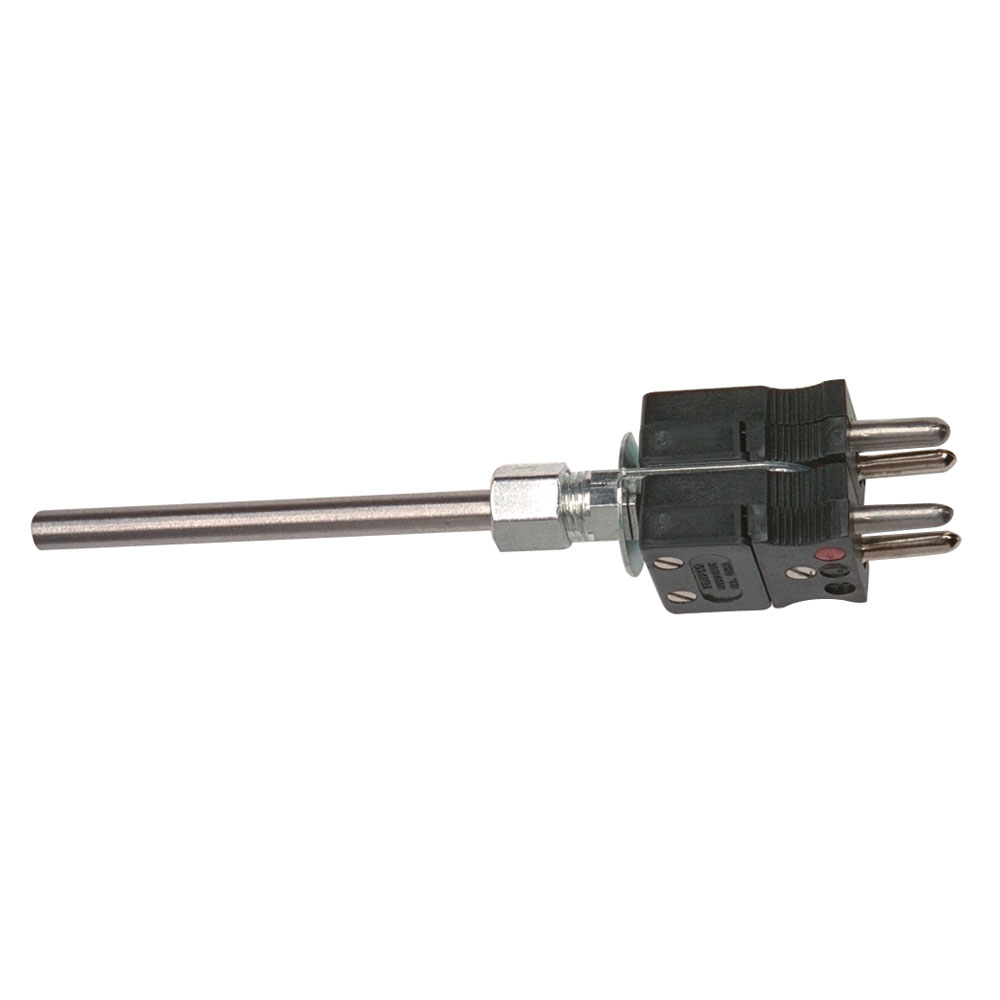

Dual Tube Adapters
  • Assemble Standard Connectors into Dual Connectors
  • For adjacent TEMPCO-PAK
  • Has Brass Ferrule
  • Use 2-Pin Connectors only
Sheath
Diameter 		Part
Number
0.063″ TCA-103-112
0.125″ TCA-103-113
0.188″ TCA-103-114
0.250″ TCA-103-115
0.313″ TCA-103-116
0.375″ TCA-103-117

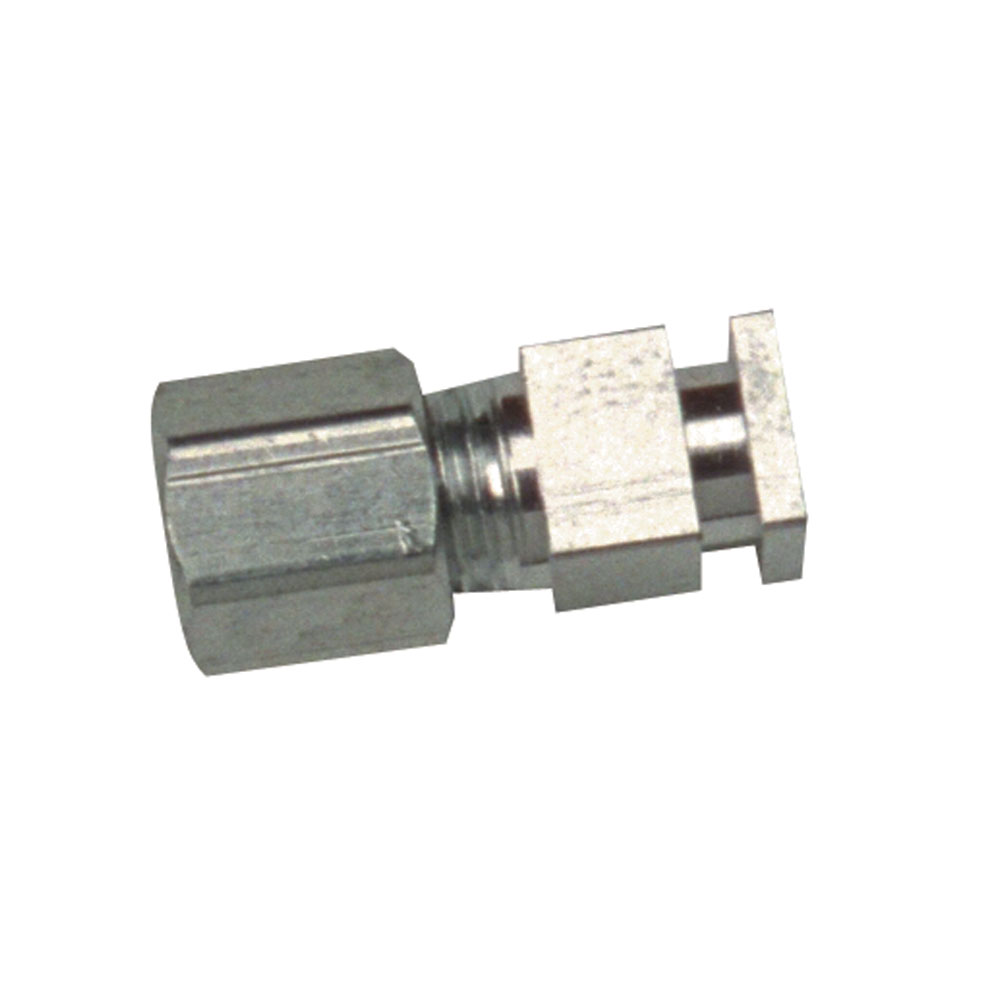

Mini Insert Tube Adapter
  • Secured by slots in body of the Plug or Jack (2-pin or 3-Pin)
  • Compression Fitting has Brass Ferrules
  • Can be used with TEMPCO-PAK or Tubing
  • For all Miniature Connectors only
Sheath DiameterPart
Number
(in)(mm)
0.041TCA-103-118
0.0631.6TCA-103-119
0.1253.17TCA-103-120

Additional Accessories

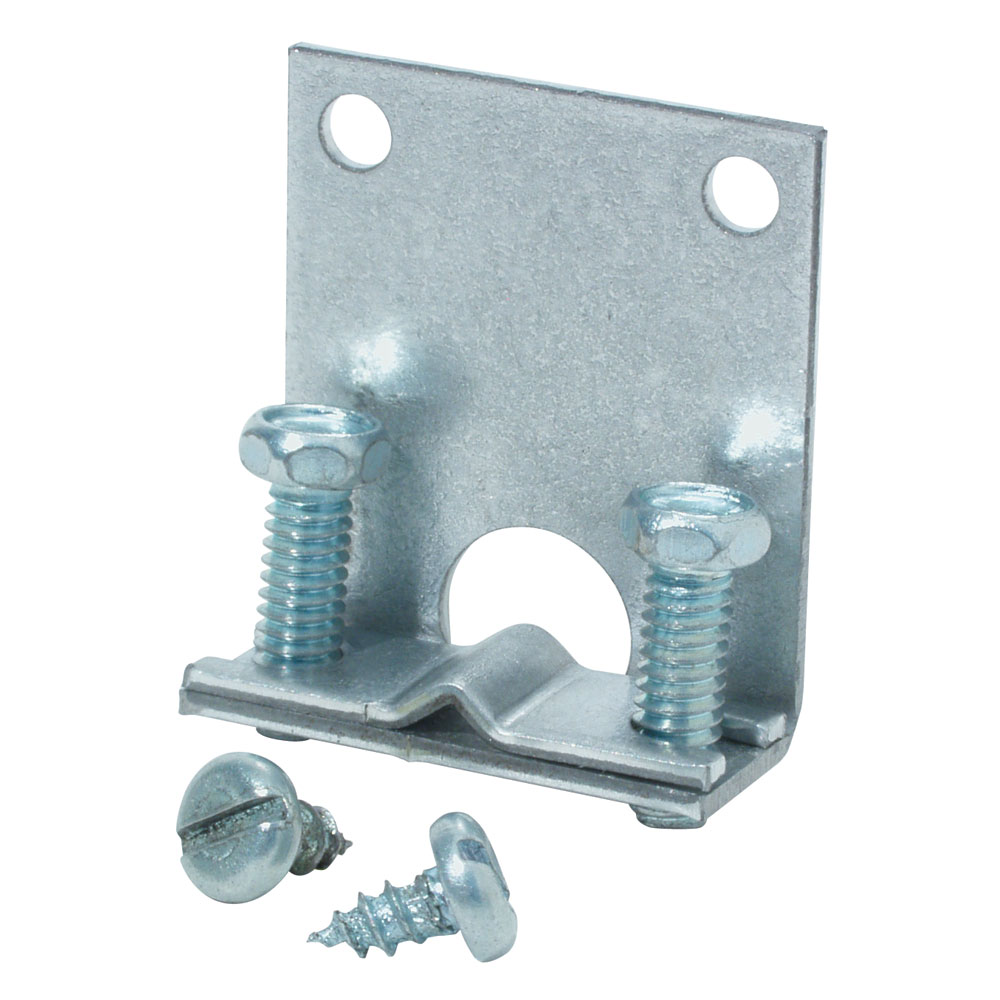

Thermocouple Bracket

  • Used to mount T/C Probes on Panel or Oven Walls
  • Supplied with two #6 Self-Tapping Screws

Part Number: SMPR-1062

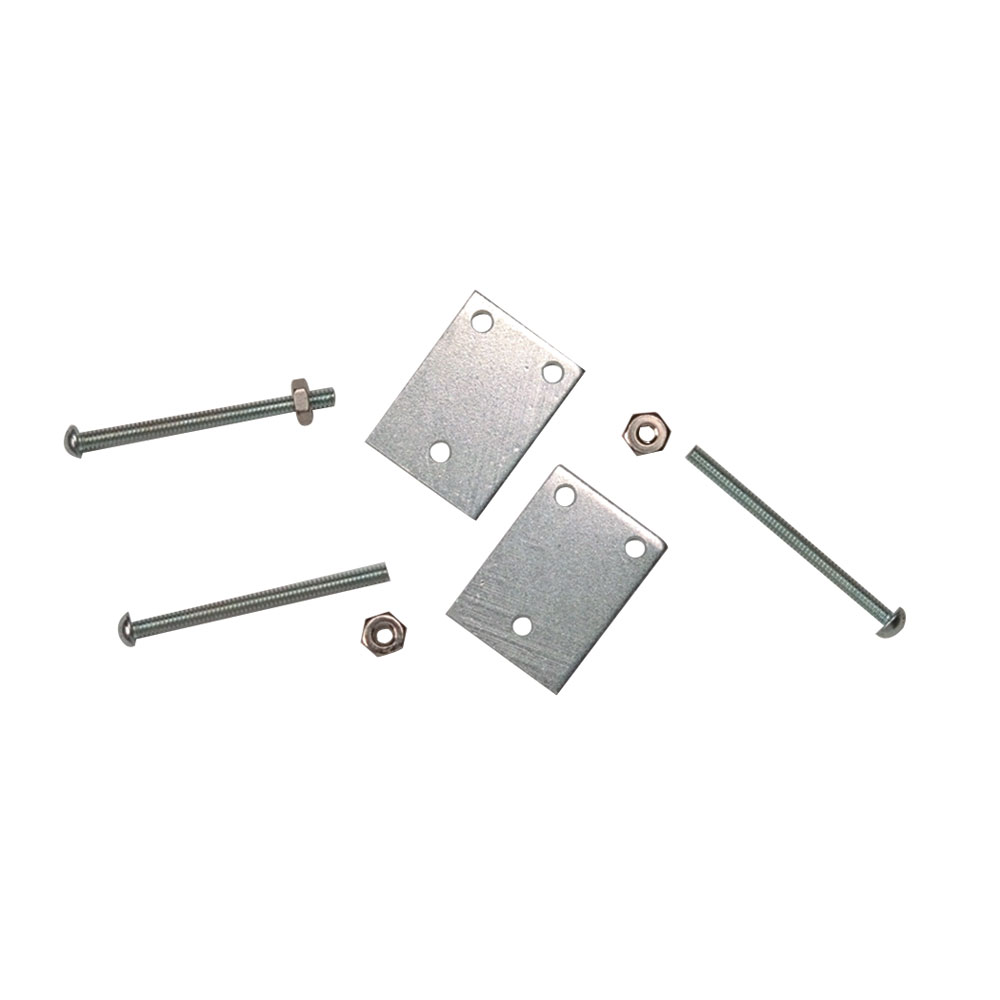

Filler Plate Set

  • When combined with Dual Tube Adapter or Dual Cable Clamp, the Filler Plate Set provides the 3/4″ pin spacing of a single Duplex Connector.

Part Number: TCA-107-104

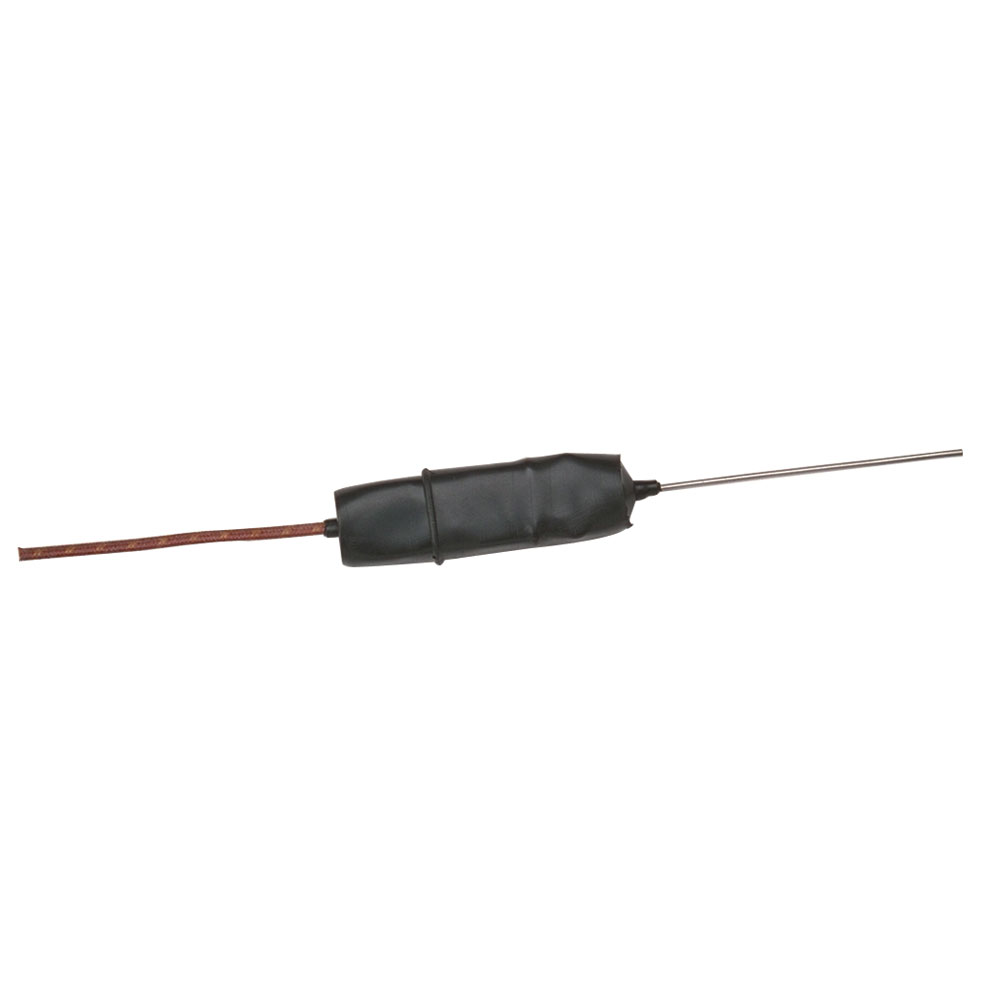

Neoprene Boot for Miniature Plug and Jack

  • Made of Flexible Neoprene
  • Sized to cover miniature connectors even with accessories (such as Cable Clamps and Tube Adapters)
  • 3/32″ Wire Entrance
  • Order 2 per Assembly
  • For 2-Pin Connections only

Part Number: TCA-121-102
