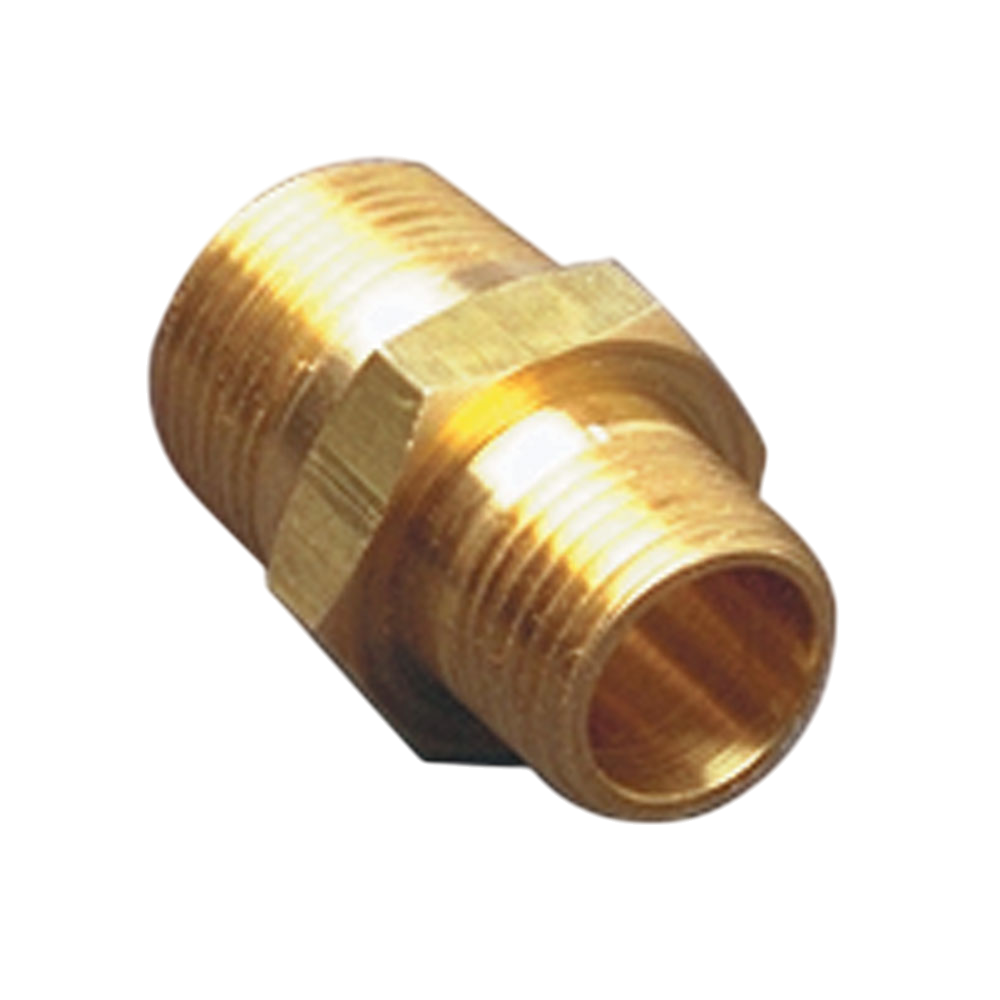

Protection Tube Mounting Parts
Mounting parts for Ceramic and Metal Protection Tubes:
- Reducing hex nipples
- Flanges
- NPT Fitting Elbows
Mounting Parts for Ceramic Tubes

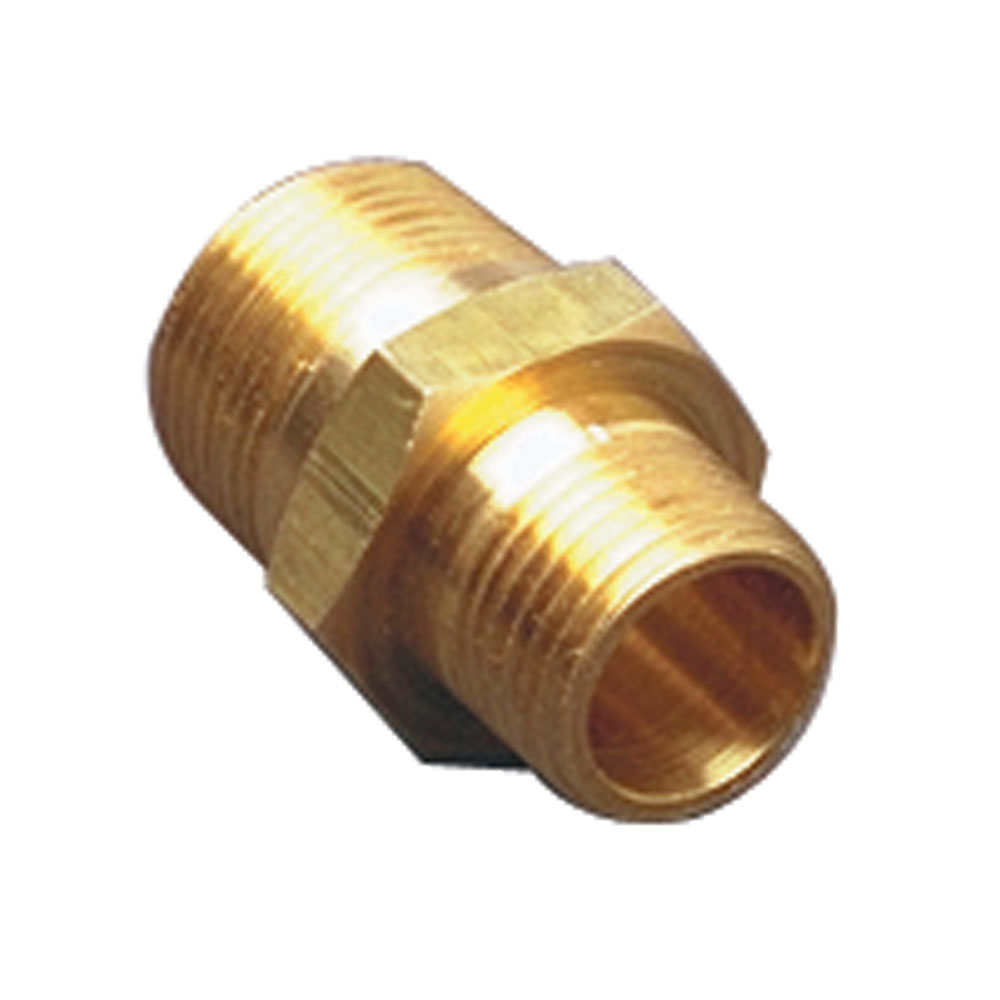

Brass or Steel Reducing Hex Nipple
| Part Number | Description |
|---|---|
| FTG-148-101 | 3⁄4″ NPT × 1⁄2″ NPT Brass reducing hex nipple for PPT-102- or APT-102- tube |
| FTG-148-102 | 3⁄4″ NPT × 1⁄2″ NPT Steel reducing hex nipple for PPT-102- or APT-102- tube |
Mounting Parts for Metal Tubes

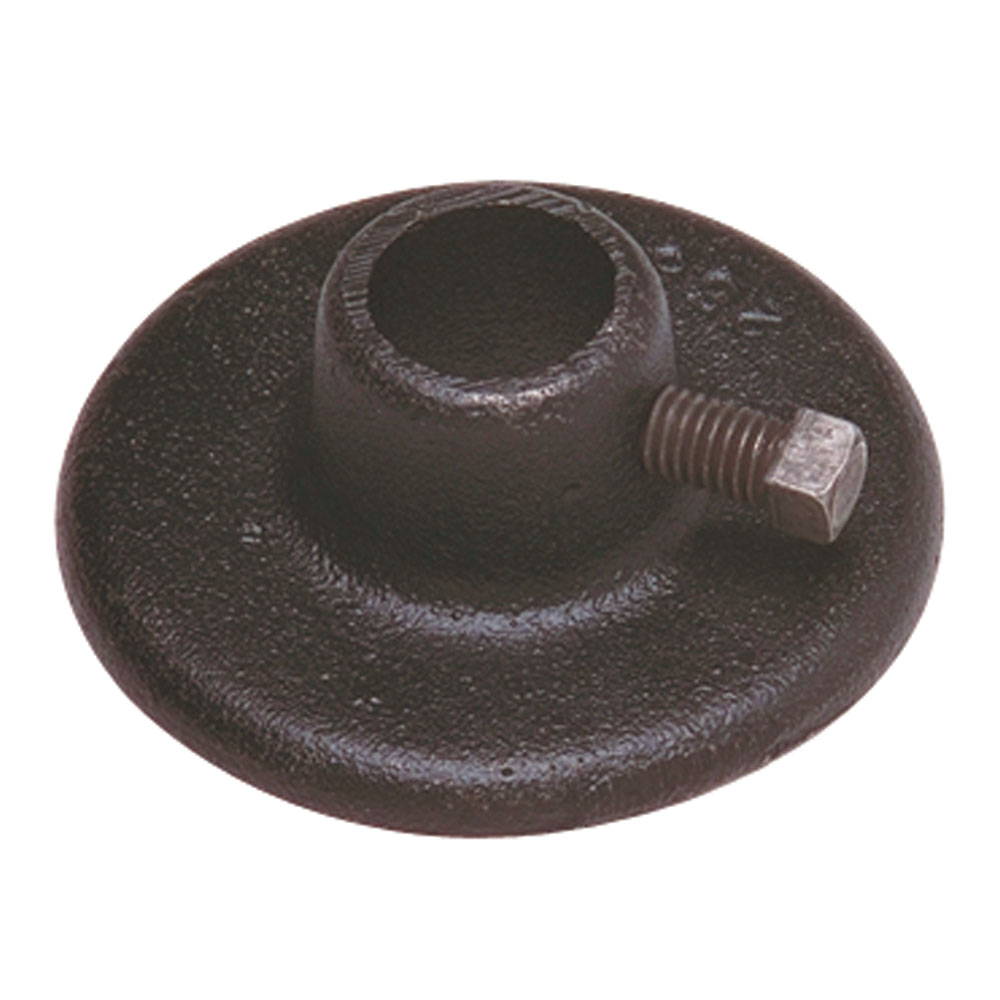

Cast Iron Flange for IPS
| Part Number | Description |
|---|---|
| FLG-122-101 | 15⁄16″ I.D. × 31⁄2″ Cast Iron Flange for 1⁄2″ IPS |
| FLG-122-102 | 11⁄4″ I.D. × 39⁄16″ Cast Iron Flange for 3⁄4″ IPS |
| FLG-122-103 | 17⁄16″ I.D. × 311⁄16″ Cast Iron Flange for 1″ IPS |

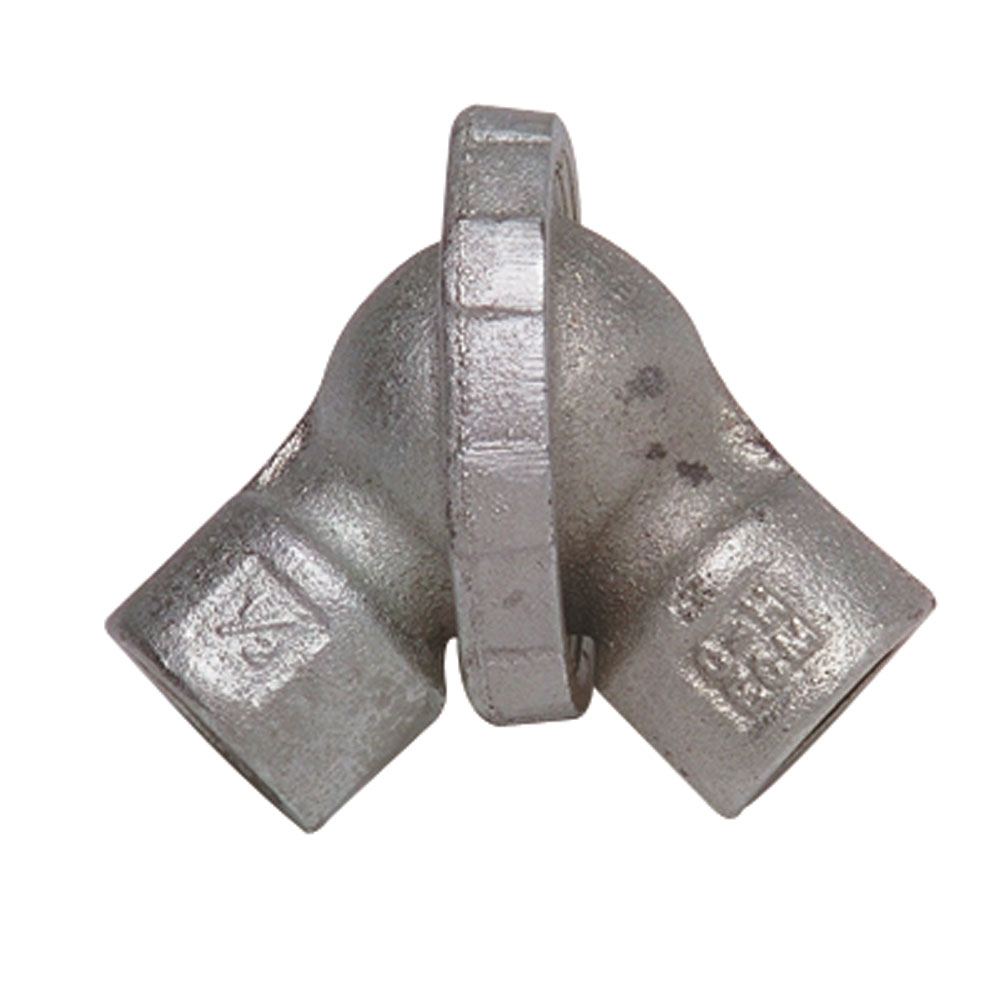

NPT Universal Elbow
| Part Number | Description |
|---|---|
| FTG-150-101 | 1⁄2″ NPT × 1⁄2″ NPT Universal Elbow |
| FTG-150-102 | 3⁄4″ NPT × 3⁄4″ NPT Universal Elbow |
| FTG-150-103 | 1″ NPT × 1″ NPT Universal Elbow |
