Quick Disconnect Plugs and Jacks
Standard plugs and jacks in 2- and 3-pin configurations, High-Temperature and Ultra-High Temperature in 2-pin configurations, and Miniature plugs and jacks in 2- and 3-pin configurations share these Common Design Features:
- Quick and easy wire connections without the need for making a loop Standard: up to 16AWG Miniature: up to 20AWG
- Standard: up to 16AWG
- Miniature: up to 20AWG
- Bodies are ANSI color coded Standard: glass-filled, high quality thermoplastic Miniature: glass-filled nylon
- Standard: glass-filled, high quality thermoplastic
- Miniature: glass-filled nylon
- Polarized pins made of material to match thermocouple calibrations Miniature R/S calibrations materials are compensated
- Miniature R/S calibrations materials are compensated
- Plugs available in hollow or solid pins Hollow pins not availabe for Miniature plugs
- Hollow pins not availabe for Miniature plugs
- Plugs and Jacks are interchangeable with other similar thermocouple connectors Standard pin spacing: 7/16 inch Miniature pin spacing: 5/16 inch
- Standard pin spacing: 7/16 inch
- Miniature pin spacing: 5/16 inch
- Can be imprinted with customer’s name (min. order & tooling charges apply)
- Single screw cover for effortless assembly
Standard Plugs & Jacks
- Temperature rating of 392°F (200°C)
- Type U is designated for RTDs and type B thermocouples
- ANSI calibrations and body colors shown below
High Temperature Standard Plugs & Jacks
- Temperature rating of 662°F (350°C) maximum
- Type U is designated for RTDs and type B thermocouples
- Calibration type painted on the body
- Body color comes in “Brown” only

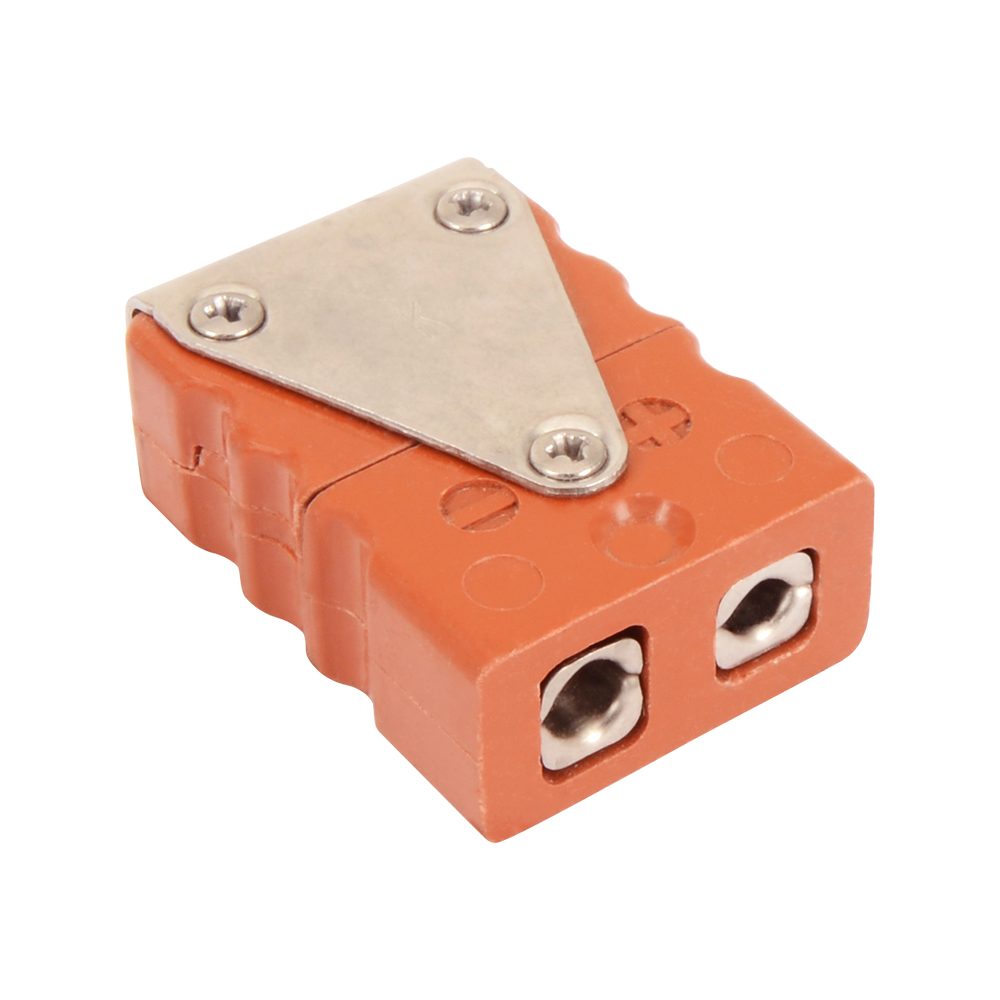

Ultra-High Temperature Plugs & Jacks
- Temperature rating of 800°F (425°C) continuous and 1000°F (540°C) intermittent
- Includes stainless steel bracket for support, stamped with calibration type
- Type J and Type K are standard calibrations; Other calibrations available upon request
- Body color comes in “Reddish-Brown” only
Standard 3-Pin Plugs & Jacks
- Temperature rating of 392°F (200°C)
- 3-Pin Plugs available in hollow or solid pins
- Standard 3-Pin Plugs and Jacks accept all accessories of the standard 2-pin plug and jack
- ANSI calibrations and body colors shown below
Miniature Plugs & Jacks
- Temperature rating of 392°F (200°C)
- Designed to be lightweight and to be space-saving
- ANSI calibrations and body colors shown below
Miniature 3-pin Plugs & Jacks
- Temperature rating of 392°F (200°C)
- Designed to be lightweight and to be space-saving
- Will accept 2-pin plug and jack accessories
- ANSI calibrations and body colors shown below
ANSI Calibration/Body Colors for Standard and Miniature Plugs and Jacks

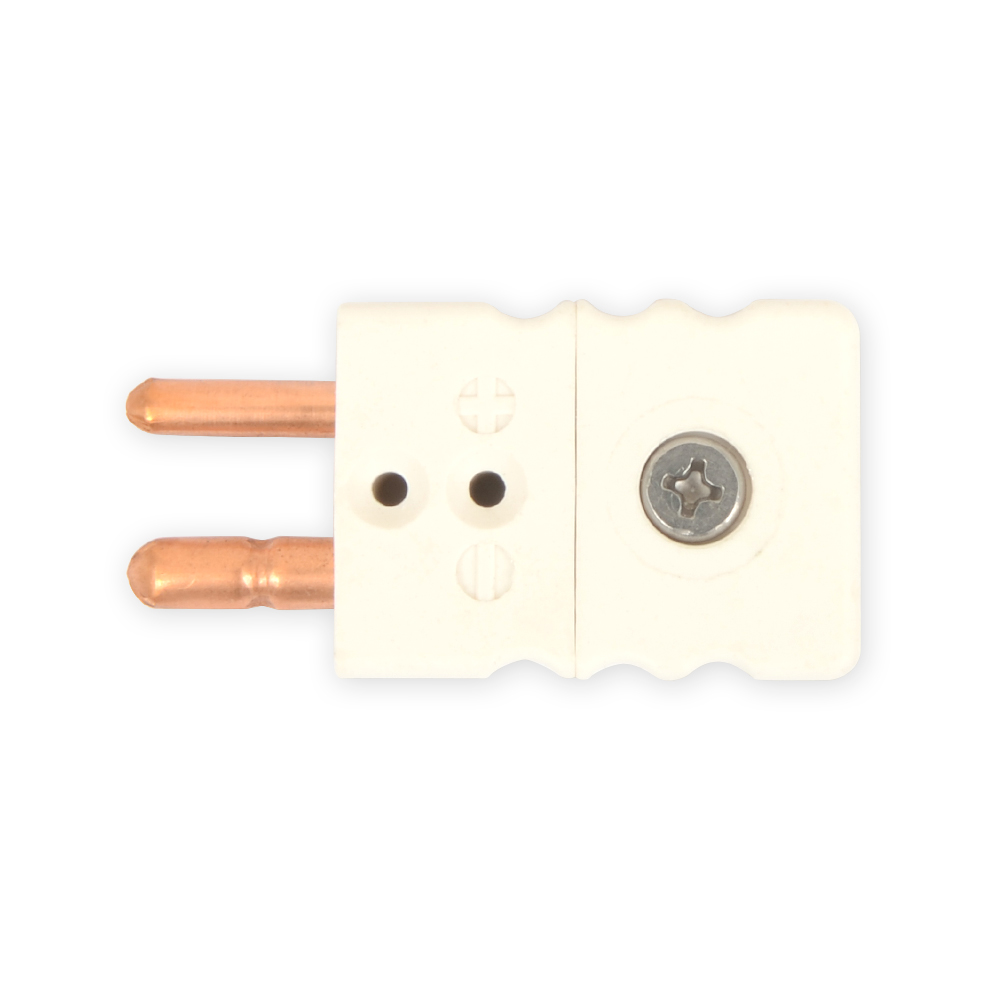

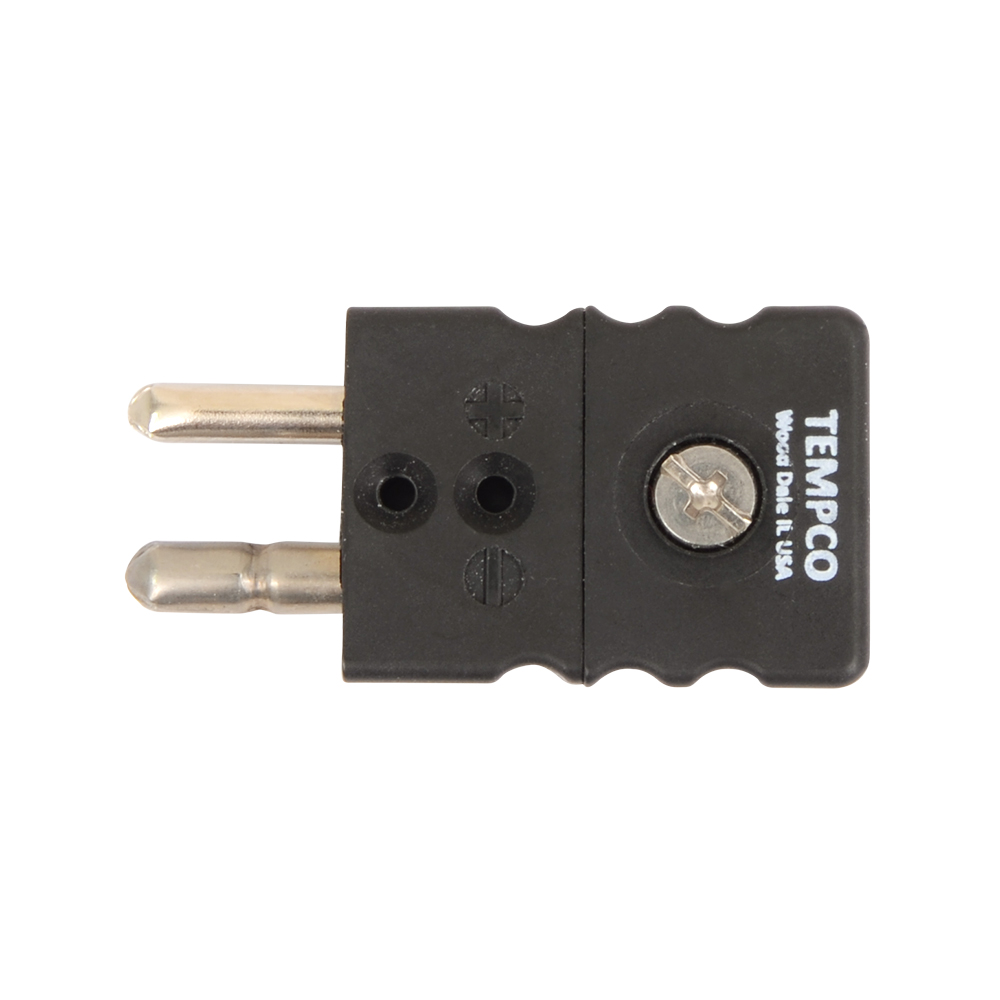

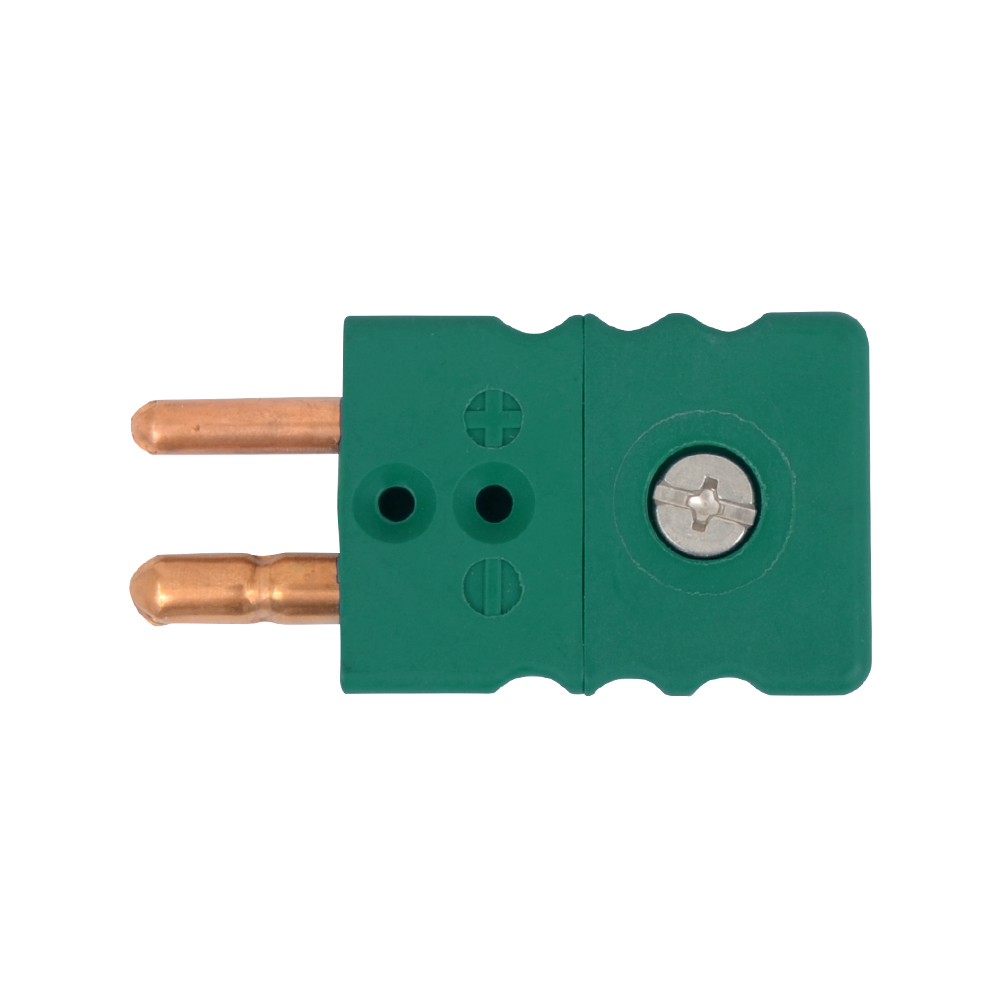

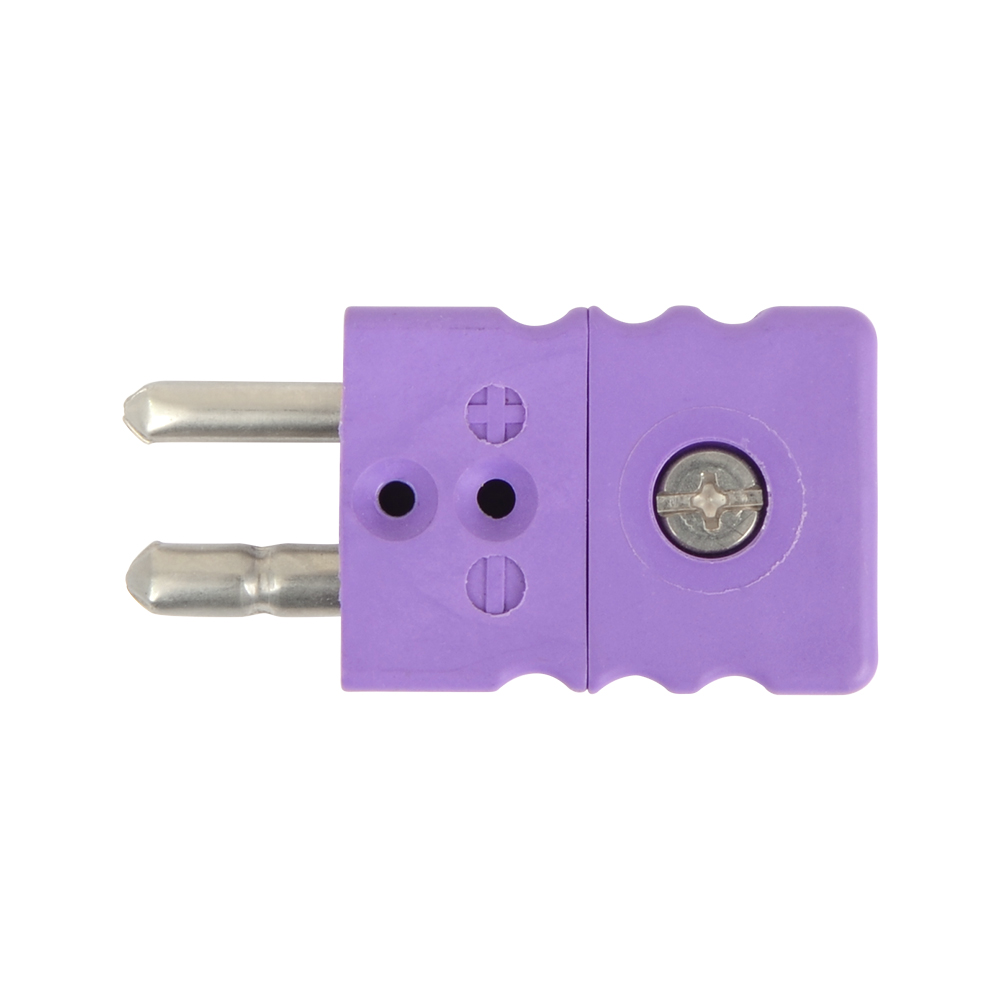

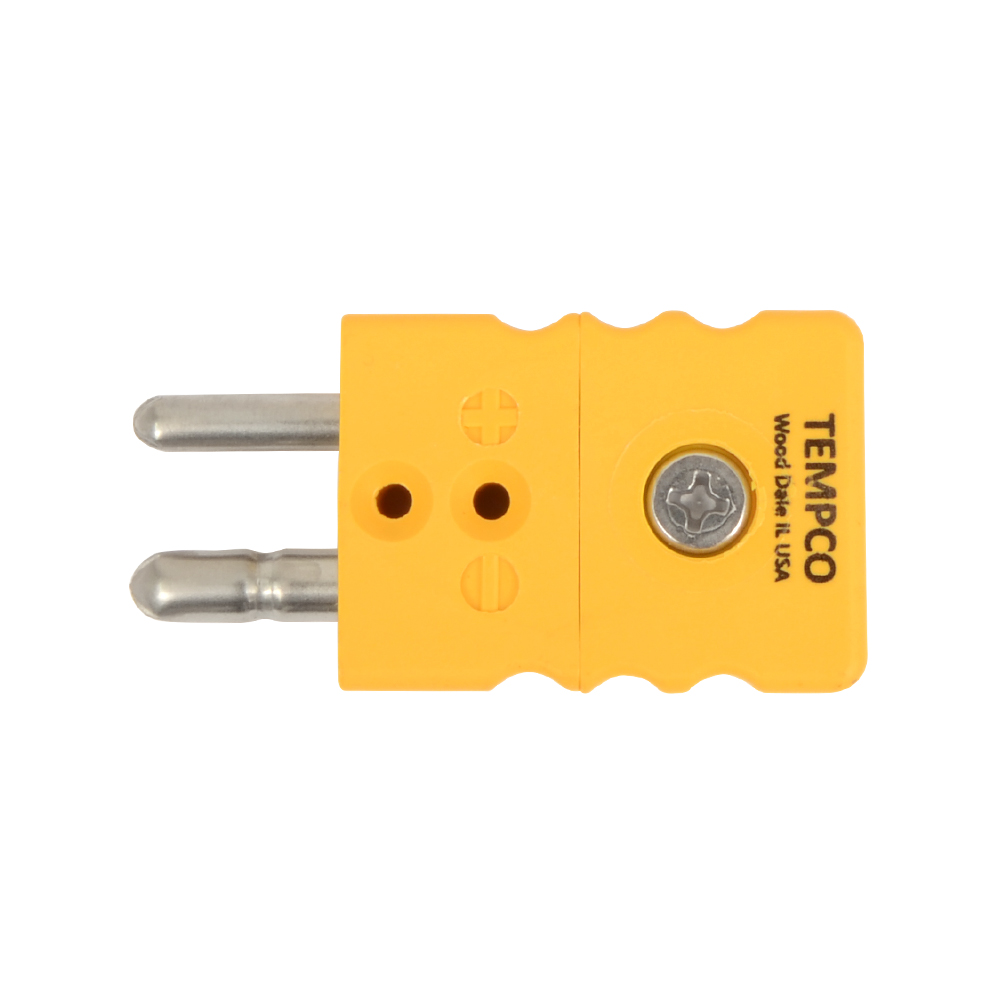

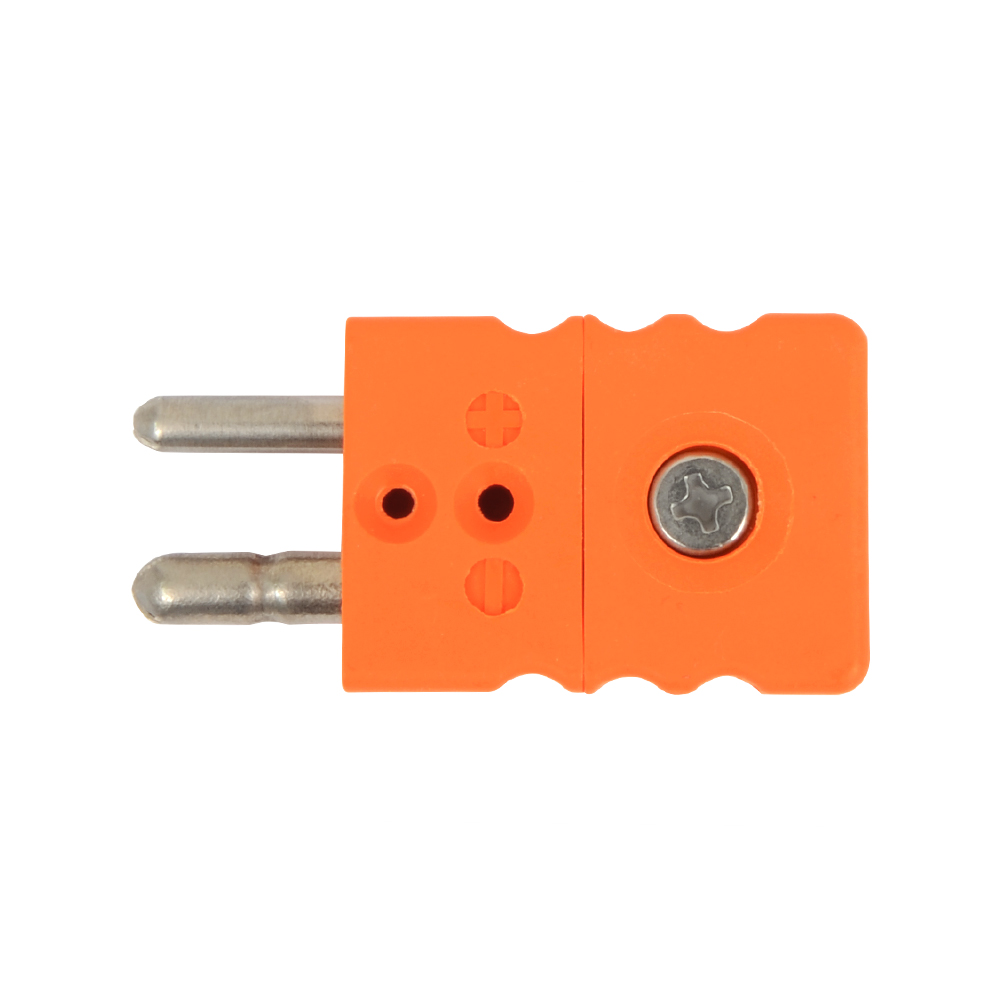

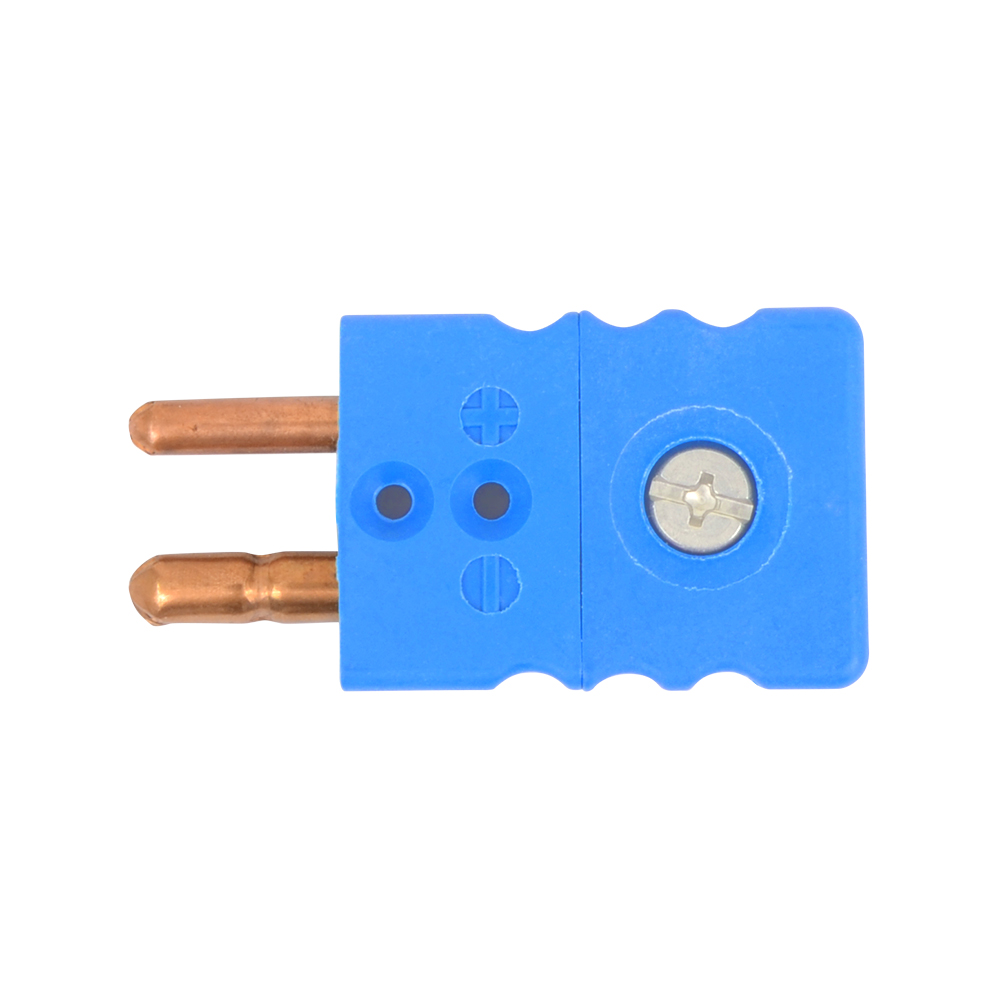

Standard 2-Pin, Hollow Plugs shown
