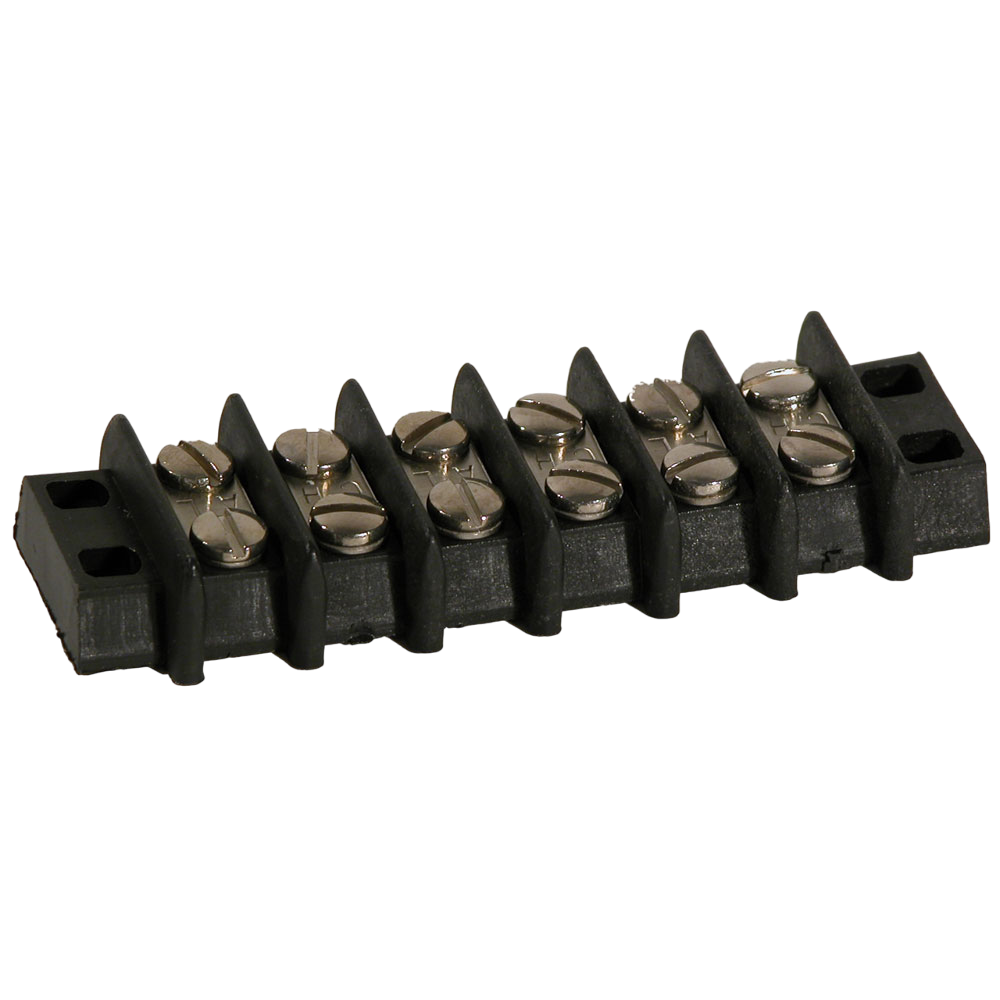

Screw Terminal Barrier Blocks
- Made of Glass-Filled Nylon, 350°F (177°C) max.
- 250 VAC RMS max. Voltage Rating, 20 Amps max.
- Supplied with 6-32 Terminal Screws.
- Available with Nickel-Plated Copper Lugs, Thermocouple Compensating Lugs or No Lugs.
Number of Terminals | “A” Dim. (inches) | “L” Dim. (inches) |
|---|---|---|
| 2 | 1.31 | 1.63 |
| 3 | 1.75 | 2.06 |
| 4 | 2.19 | 2.50 |
| 6 | 3.06 | 3.38 |
| 8 | 3.94 | 4.25 |
| 10 | 4.81 | 5.13 |
| 12 | 5.69 | 6.00 |
| 14 | 6.56 | 6.88 |
| 16 | 7.44 | 7.75 |
| 20 | 9.19 | 9.50 |
