Thermocouple Insulators
Depending on properties required available as oval or round and in several materials:
- Cordierite
- Mullite
- Alumina
- Steatite

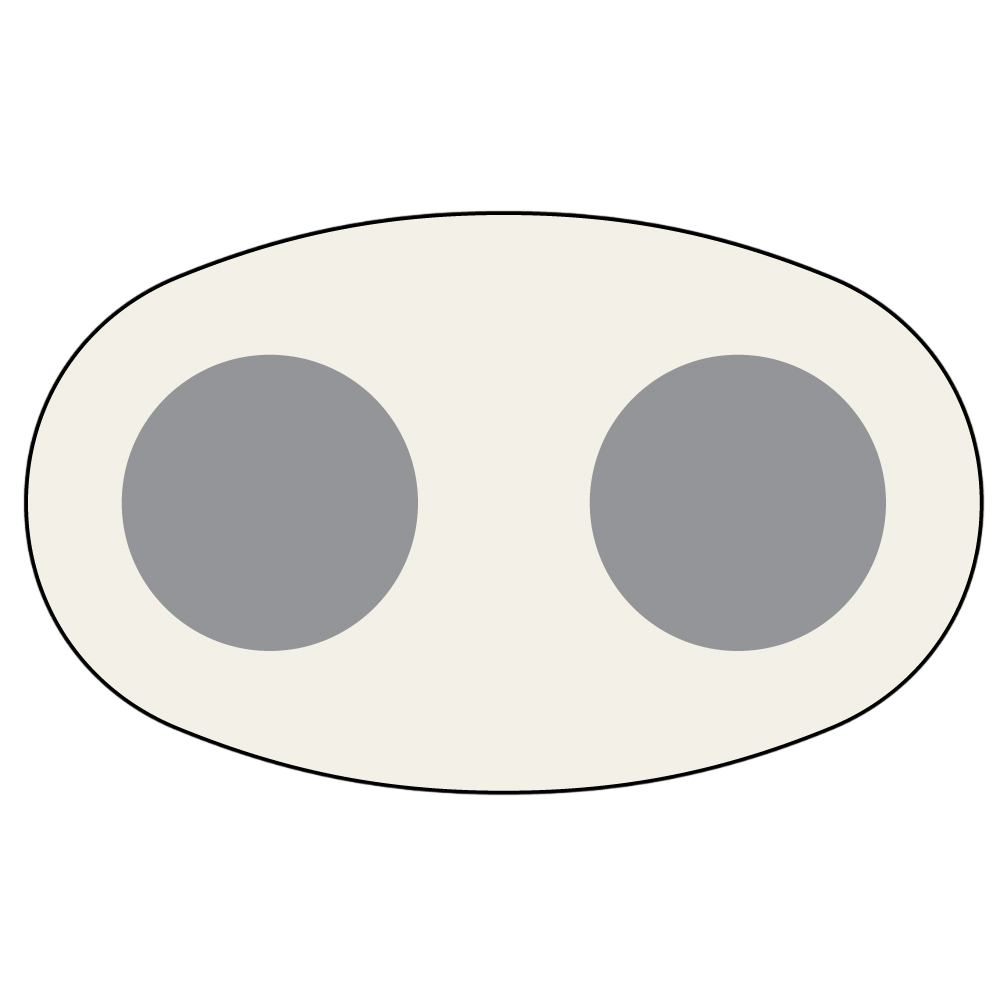

Oval – Double Hold Cordierite Thermocouple Insulator
Maximum Temperature: 2900°F (1593°C)
| Part Number | Width (in) | Thickness (in) | Bore (in) | Max. B & S Gauge Size | Length (in) |
|---|---|---|---|---|---|
| COR-120-105 | 0.437 | 0.25 | 0.156 | 7 | 1 |
| COR-120-104 | 0.375 | 0.217 | 0.11 | 10 | 1 |
| COR-120-106 | 0.172 | 0.118 | 0.042 | 19 | 1 |
Round – Single Hole Mullite Thermocouple Insulator
Maximum Temperature: 2900°F (1593°C)
| Part Number | Diameter (in) | Bore (in) | Max. B & S Gauge Size | Length (in) |
|---|---|---|---|---|
| COR-123-101 | 0.062 | 0.031 | 22 | 12 |
| COR-123-102 | 0.125 | 0.062 | 16 | 12 |
| COR-123-103 | 0.187 | 0.094 | 12 | 12 |
Round – Double Hole Mullite Thermocouple Insulator
Maximum Temperature: 2400°F (1315°C)
| Part Number | Diameter (in) | Bore (in) | Max. B & S Gauge Size | Length (in) |
|---|---|---|---|---|
| COR-125-101 | 0.156 | 0.046 | 18 | 1 |
| COR-125-102 | 0.156 | 0.046 | 18 | 3 |
| COR-126-101 | 0.25 | 0.085 | 13 | 1 |
| COR-126-102 | 0.25 | 0.085 | 13 | 3 |
| *COR-127-101 | 0.437 | 0.156 | 7 | 1 |
| *COR-127-102 | 0.437 | 0.156 | 7 | 3 |

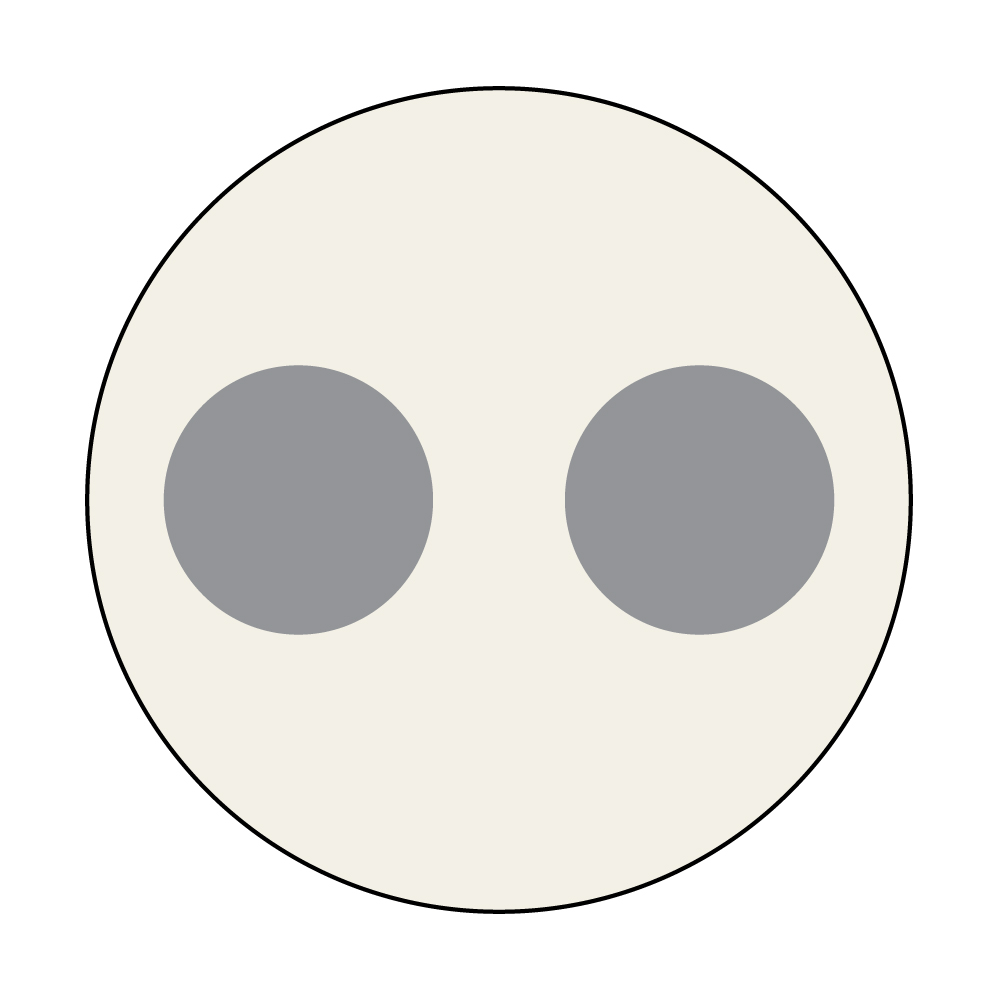

Round – Double Hole Alumina Thermocouple Insulator
Maximum Temperature: 3300°F (1815°C)
| Part Number | Diameter (in) | Bore (in) | Max. B & S Gauge Size | Length (in) |
|---|---|---|---|---|
| COR-124-101 | 0.125 | 0.031 | 22 | 1 |
| COR-124-102 | 0.125 | 0.031 | 22 | 2 |
| COR-124-103 | 0.125 | 0.031 | 22 | 3 |
| COR-124-104 | 0.125 | 0.031 | 22 | 12 |
| COR-124-105 | 0.062 | 0.016 | 28 | 12 |
| COR-124-106 | 0.187 | 0.04 | 20 | 12 |

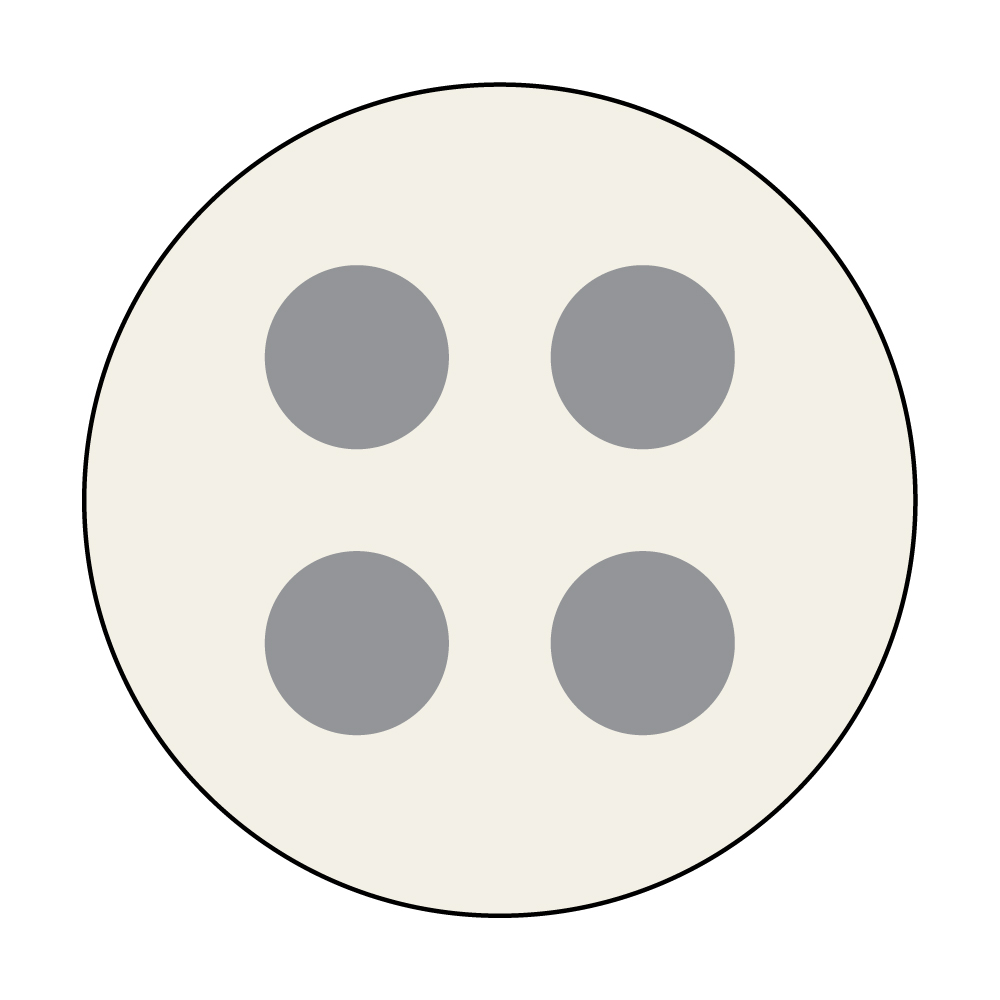

Round – FOUR Hole Alumina Thermocouple Insulator
Maximum Temperature: 3300°F (1815°C)
| Part Number | Diameter (in) | Bore (in) | Max. B & S Gauge Size | Length (in) |
|---|---|---|---|---|
| COR-128-101 | 0.187 | 0.047 | 18 | 1 |
| COR-128-102 | 0.312 | 0.078 | 13 | 1 |

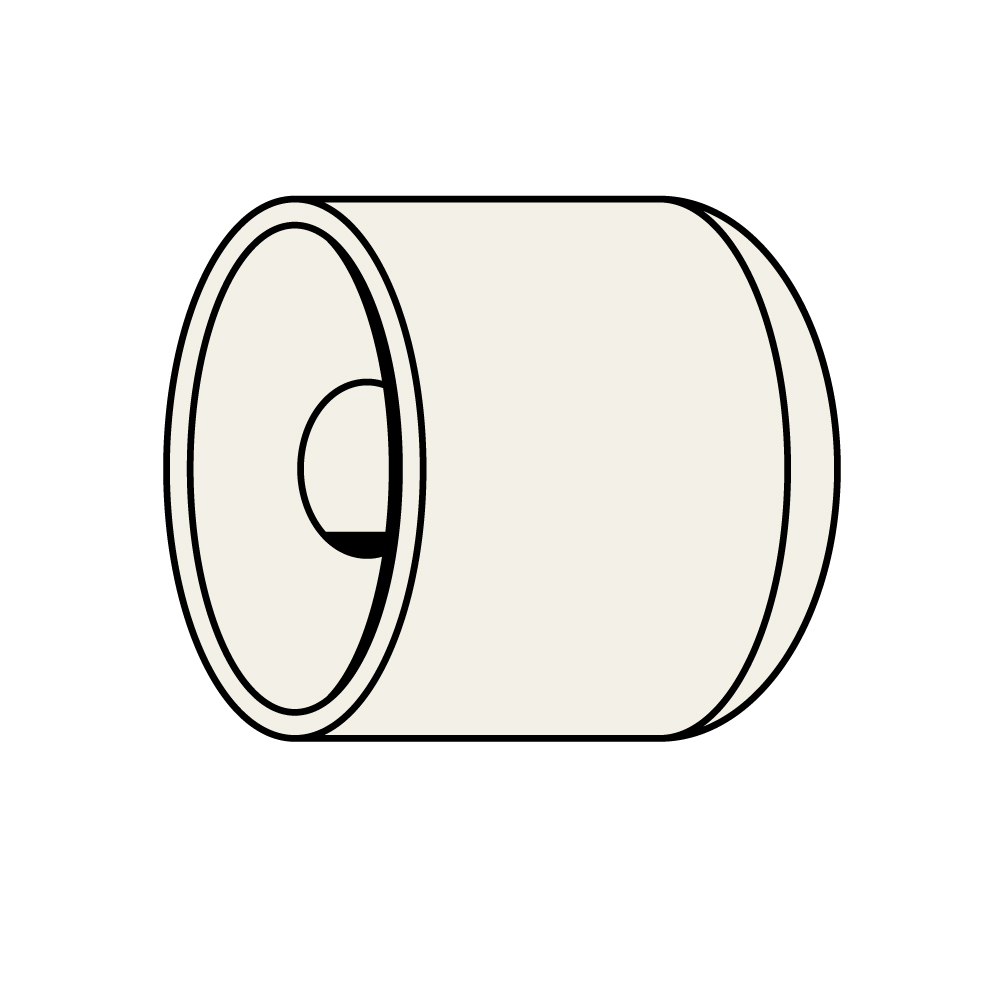

Fish Spine – Steatite Ball and Socket Thermocouple Insulators
Maximum Temperature: 2400°F (1315°C)
| Part Number | Diameter (in) | Bore (in) | Max. B & S Gauge Size | Length (in) | Number of Pcs. per Sleeve |
|---|---|---|---|---|---|
| CER-103-101 | 0.11 | 0.056 | 16 | 0.11 | 67 pcs/6″ |
| CER-103-102 | 0.17 | 0.068 | 14 | 0.17 | 86 pcs/12″ |
| CER-103-104 | 0.2 | 0.092 | 12 | 0.2 | Bulk Loose |
| CER-103-105 | 0.33 | 0.124 | 9 | 0.33 | Bulk Loose |
| CER-103-106 | 0.4 | 0.156 | 7 | 0.4 | Bulk Loose |
| CER-103-109 | 0.26 | 0.156 | 7 | 0.26 | Bulk Loose |
