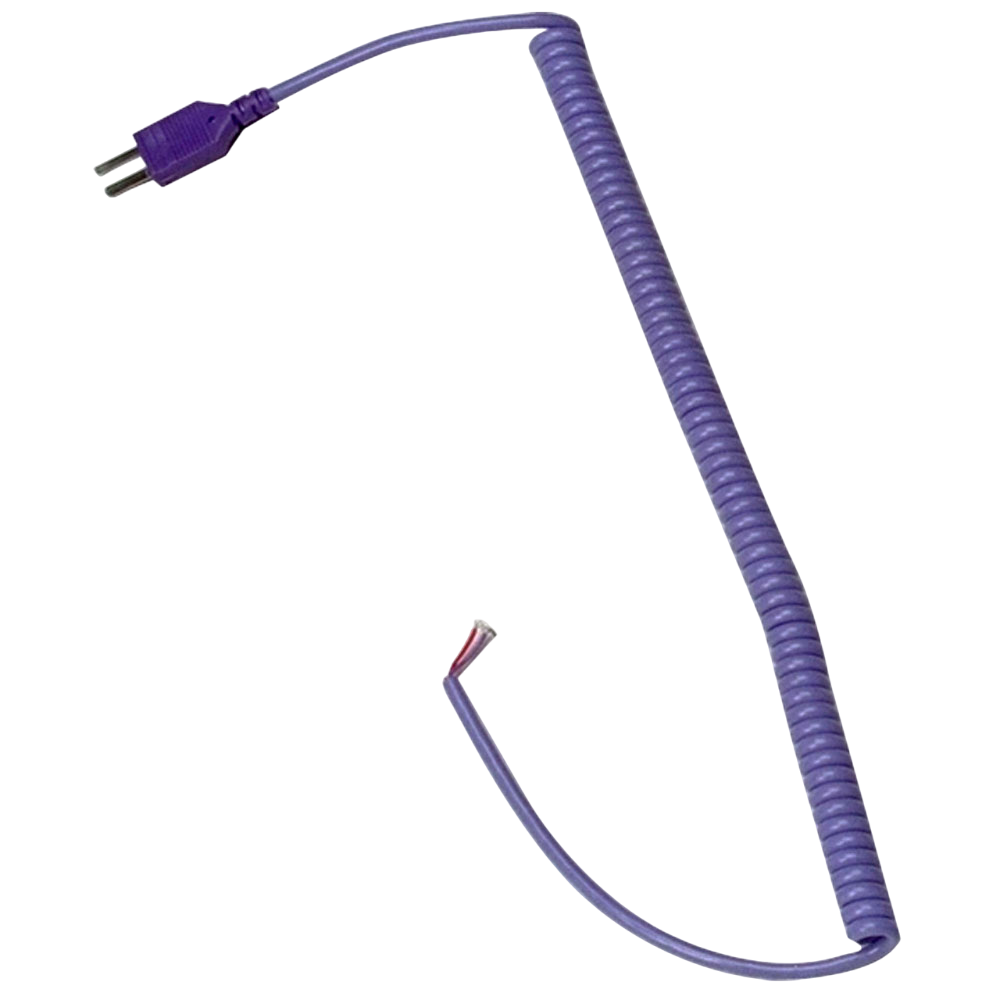

Coil Cord
Design/Special Features:
- Rated for 221°F (105°C) upper limit (above 104°F [40°C], coil form may change if stretched)
- ANSI Color Coded Outer Jacket
- Wire is 26 gauge stranded with PVC insulation and the outer jacket is polyurethane
- Open ends have approximately 4 inches straight.
| Calibration | Outer Jacket Color | Coil Length (in) | Extended Length Maximum (in) | Part Number | |
|---|---|---|---|---|---|
| †With Miniature Plug Molded on One End | †Both Ends Open | ||||
| J | Black | 12 | 60 | TCW-124-101 | TCW-125-101 |
| J | Black | 24 | 120 | TCW-124-102 | TCW-125-102 |
| K | Yellow | 12 | 60 | TCW-124-103 | TCW-125-103 |
| K | Yellow | 24 | 120 | TCW-124-104 | TCW-125-104 |
| E | Purple | 12 | 60 | TCW-124-105 | TCW-125-105 |
| T | Blue | 12 | 60 | TCW-124-106 | TCW-125-106 |
| T | Blue | 24 | 120 | TCW-124-107 | TCW-125-107 |
| R/S | Green | 12 | 60 | TCW-124-108 | TCW-125-108 |
| R/S | Green | 32 | 180 | — | TCW-125-109 |
| U (2-wire uncompensated) | White | 12 | 60 | TCW-124-109 | TCW-125-110 |
| 3-wire RTD | White | 12 | 60 | — | TCW-125-111 |
| 3-wire RTD | White | 36 | 180 | — | TCW-125-112 |
†Other configurations and lengths are available on special request. Minimum order may apply. Constult Tempco with your requirements.
